Home >> Mercury >> 1985 >> Capri V8-302 5.0L CFI HO >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Malfunction Indicator Lamp >> Diagrams >> Electrical Diagrams

Electrical Diagrams

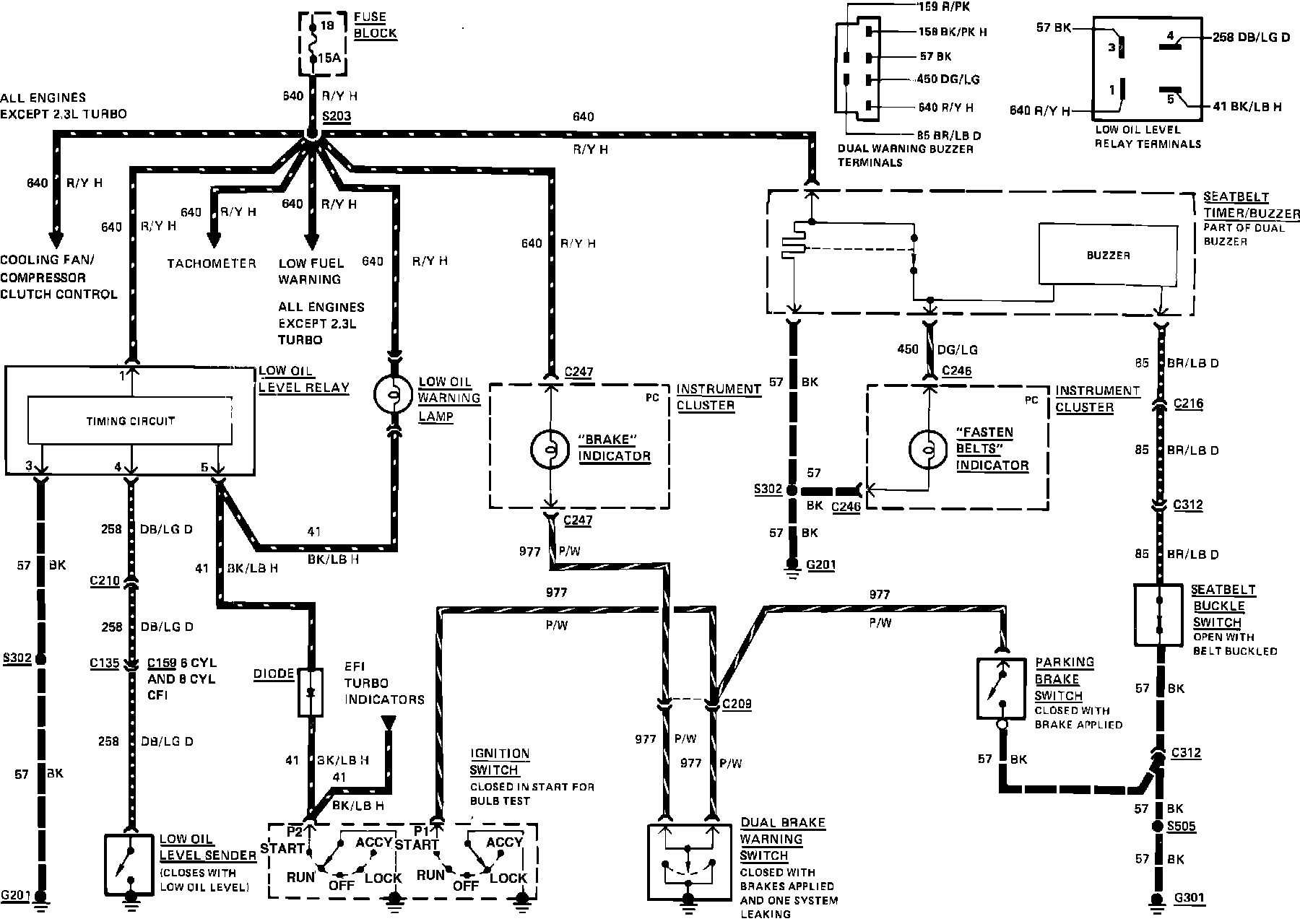

Fig. 8 Brake, Low Oil & Seatbelt Warning Indicators Wiring Circuit. 1985:
