Electrical Diagrams

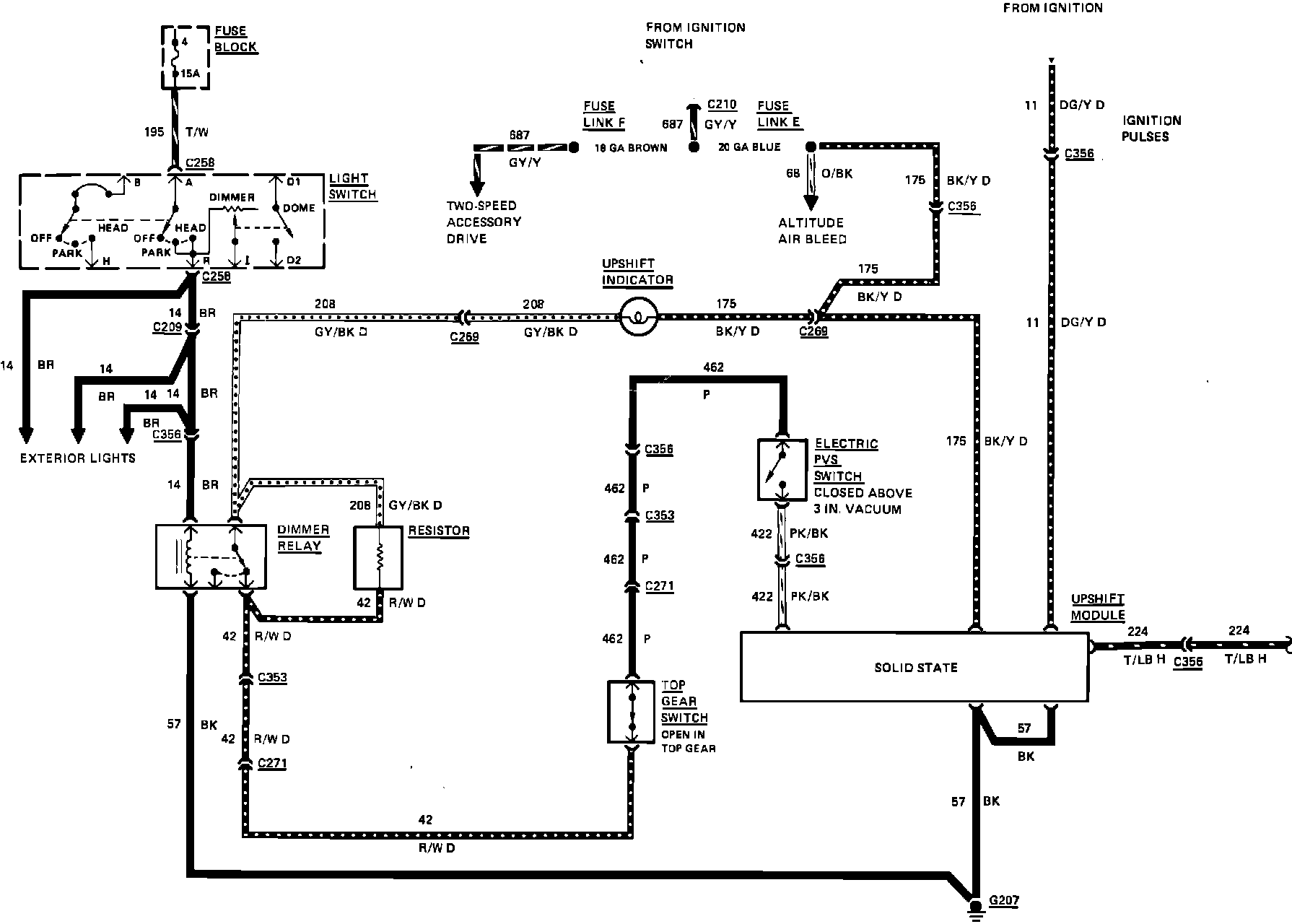

Fig. 57 Upshift Indicator Wiring Circuit (Part 1 of 2). 1985 8 Cylinder:

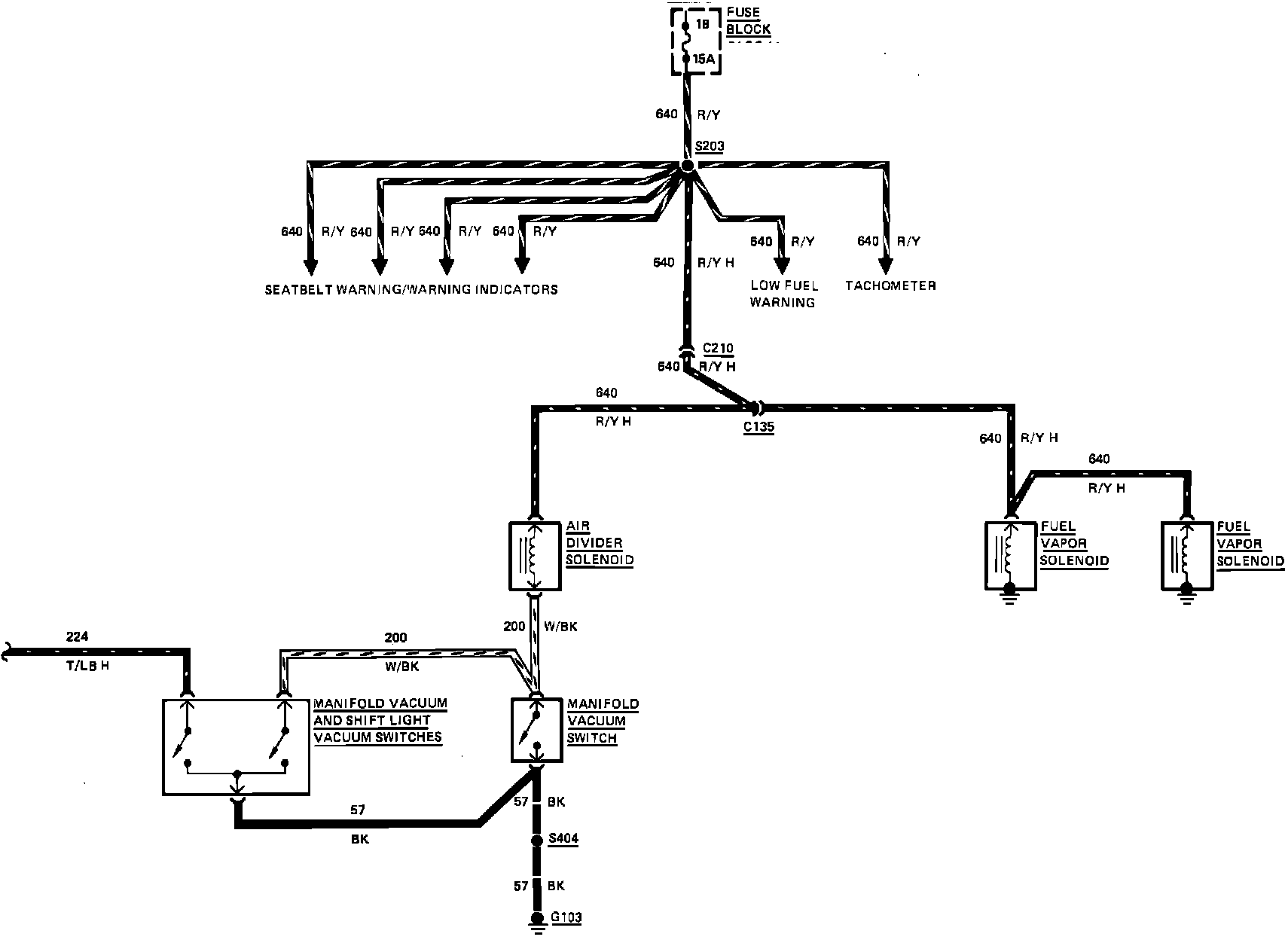

Fig. 57 Upshift Indicator Wiring Circuit (Part 2 of 2). 1985 8 Cylinder:
