Ground Distribution (G301)

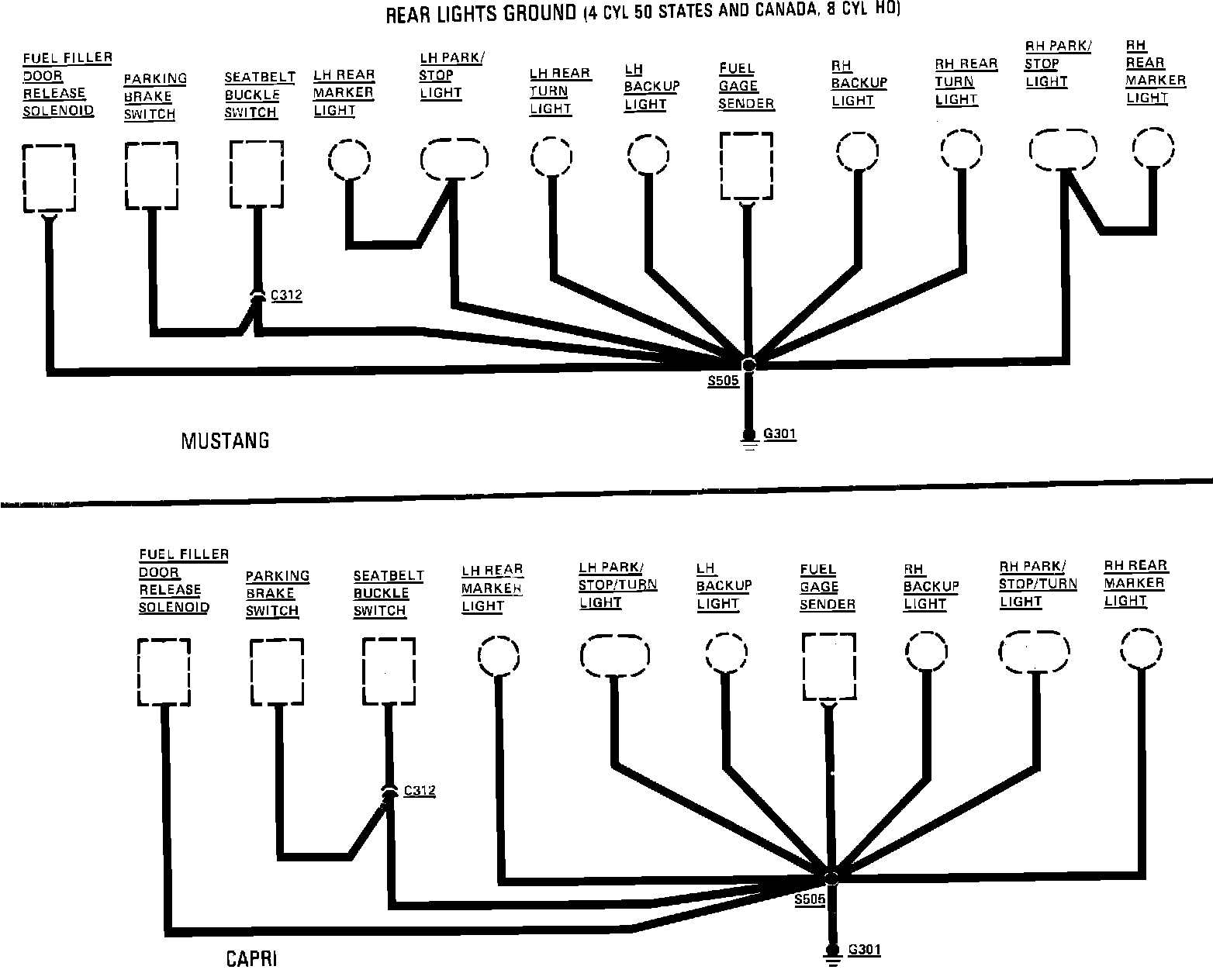

Fig. 33 Ground Distribution (G301). 1985 4 Cylinder Less Turbo & 8 Cylinder High Output:
