Home >> Mercury >> 1985 >> Capri L4-140 2.3L SOHC >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Cooling System >> Radiator Cooling Fan Control Module >> Diagrams >> Electrical Diagrams

Electrical Diagrams

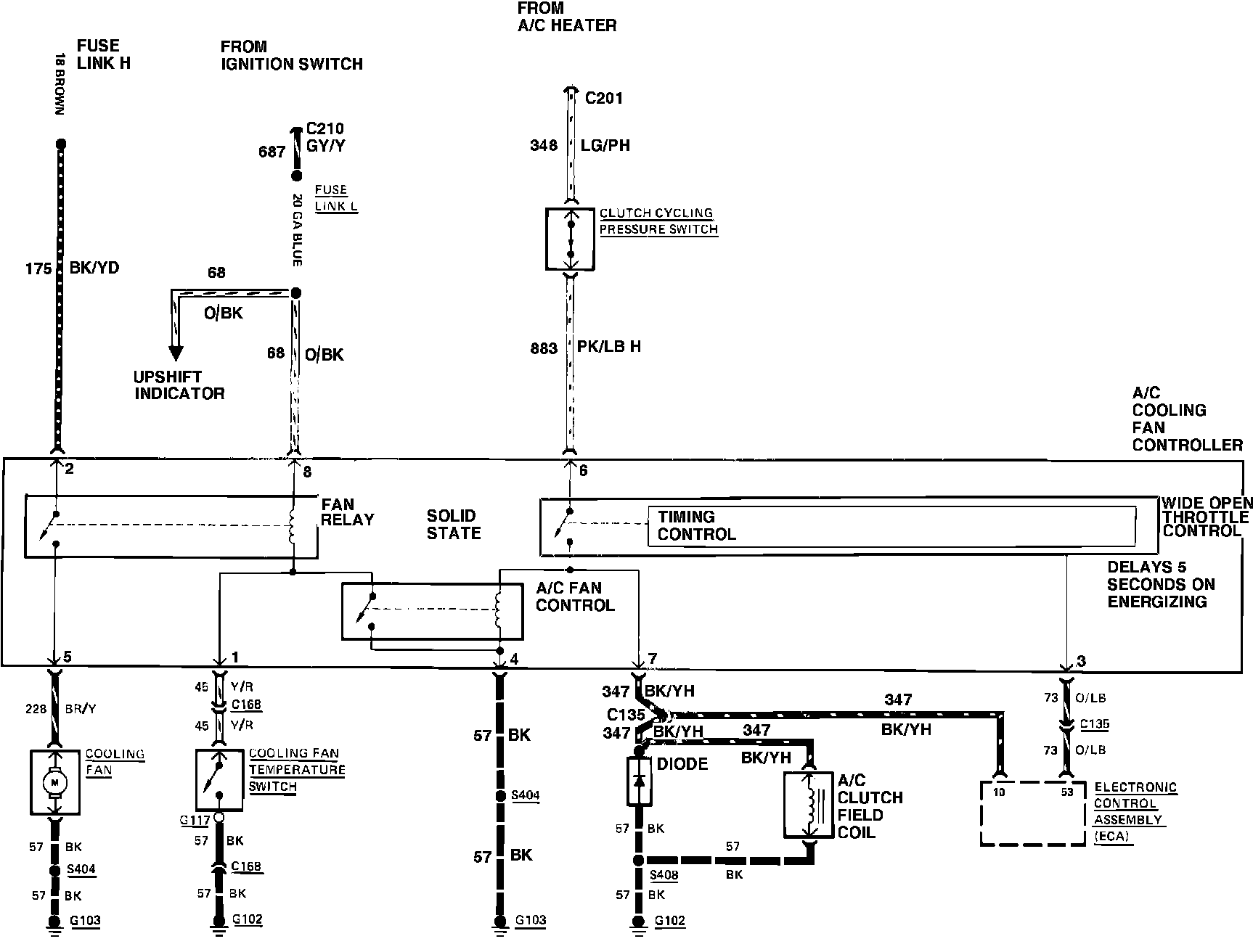

Fig. 15 Cooling Fan Wiring Circuit (Less Turbo). 1985 4 Cylinder:
