System Diagram

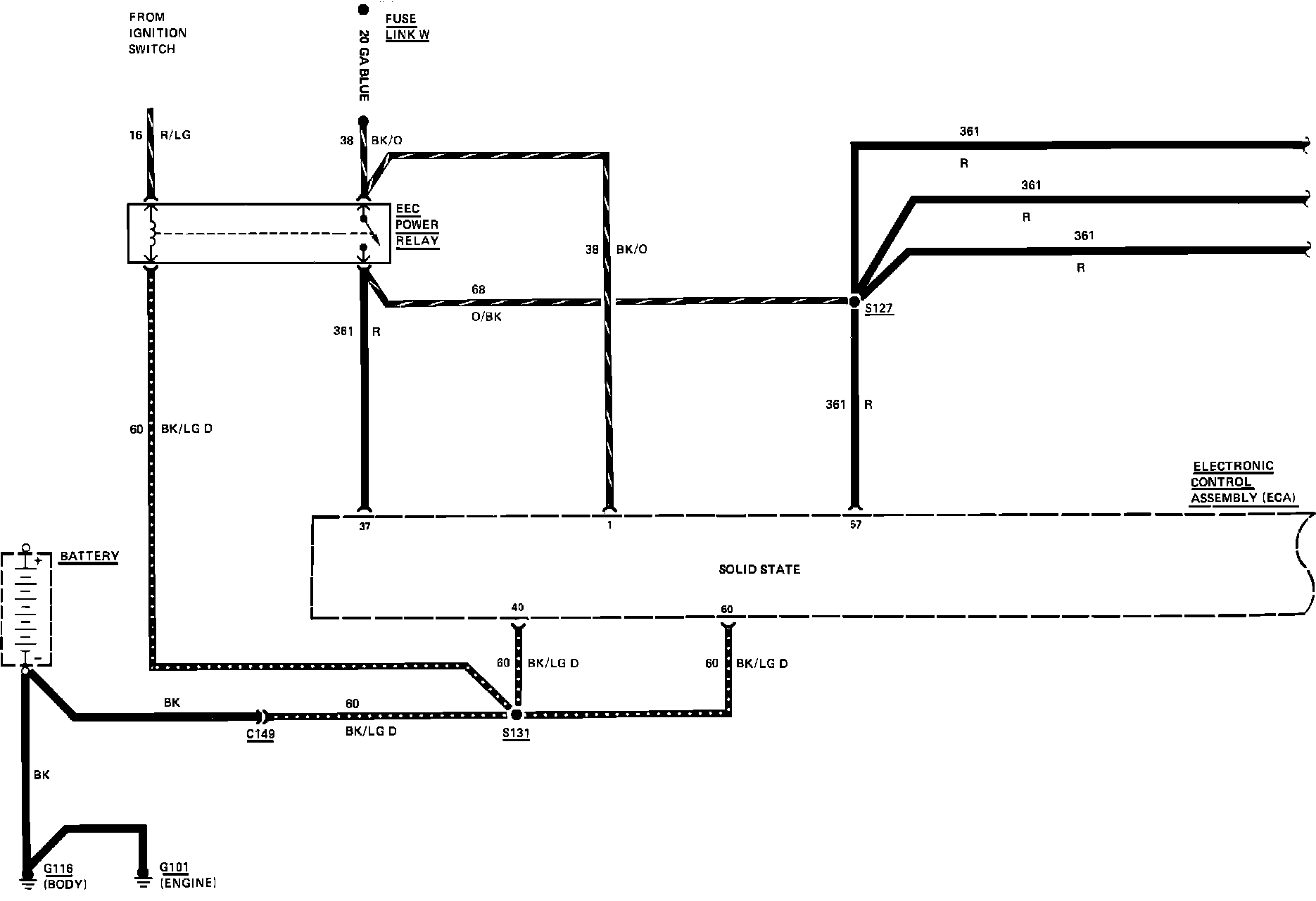

Fig. 19 Electronic Engine Control Wiring Circuit (Part 1 of 3). 1985 4 Cylinder Less Turbo:

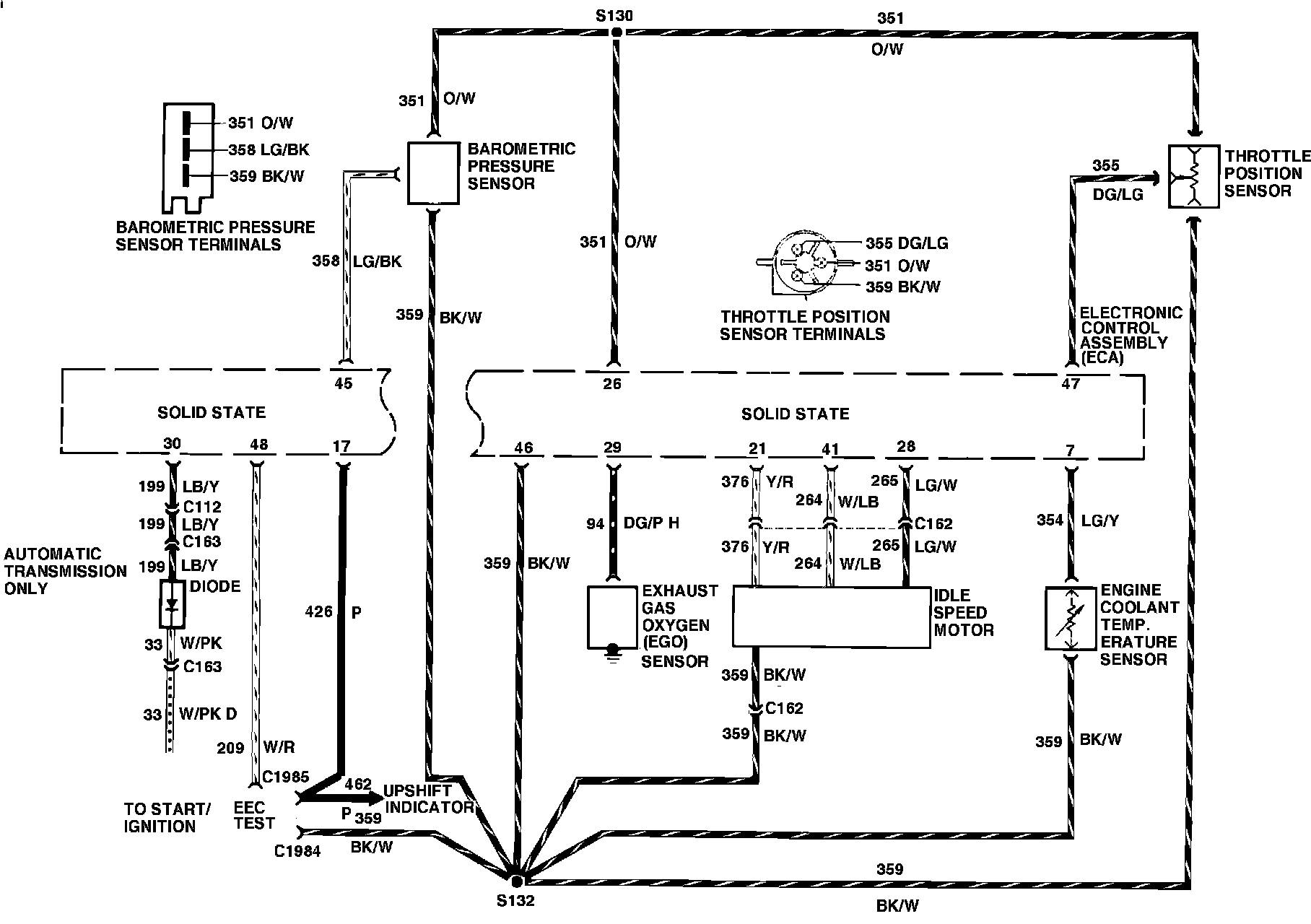

Fig. 19 Electronic Engine Control Wiring Circuit (Part 2 of 3). 1985 4 Cylinder Less Turbo:

Fig. 19 Electronic Engine Control Wiring Circuit (Part 3 of 3). 1985 4 Cylinder Less Turbo:
