Axle Shaft - New Right Hand Interconnecting Shaft

85ford04

Article No. 85-4-17

HALF-SHAFT - NEW RIGHT HAND INTERCONNECTING SHAFT (2.3L HSC)

FORD 1984-85 TEMPO

LINCOLN-MERCURY 1984-85 TOPAZ

A new right hand interconnecting shaft with a reverse mounted damper assembly was incorporated during November, 1984 vehicle production. Service parts will also have the torsional dampers reversed on right hand interconnecting shaft assemblies for current and past model applications.

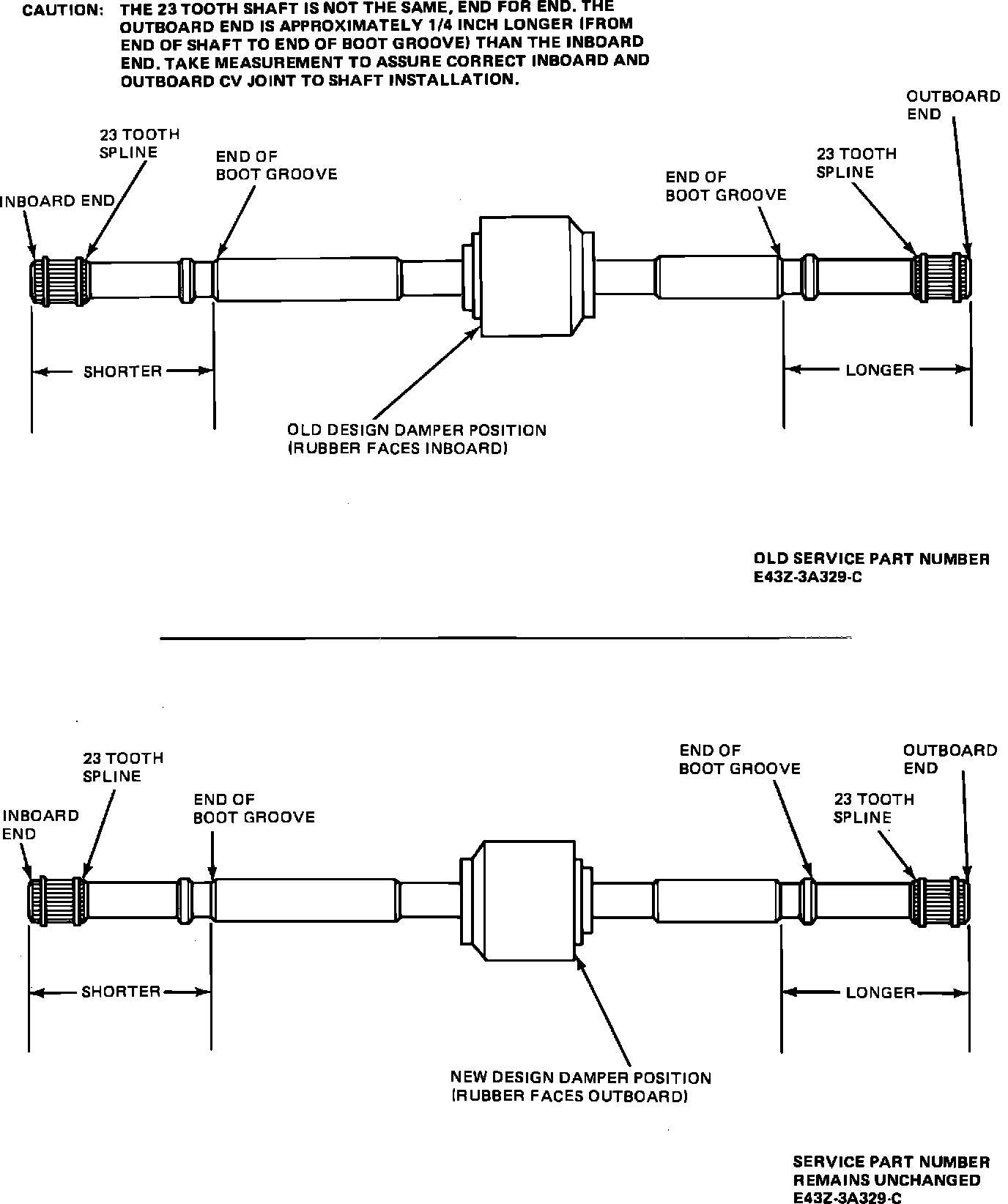

Figure 5 - Axle With Damper:

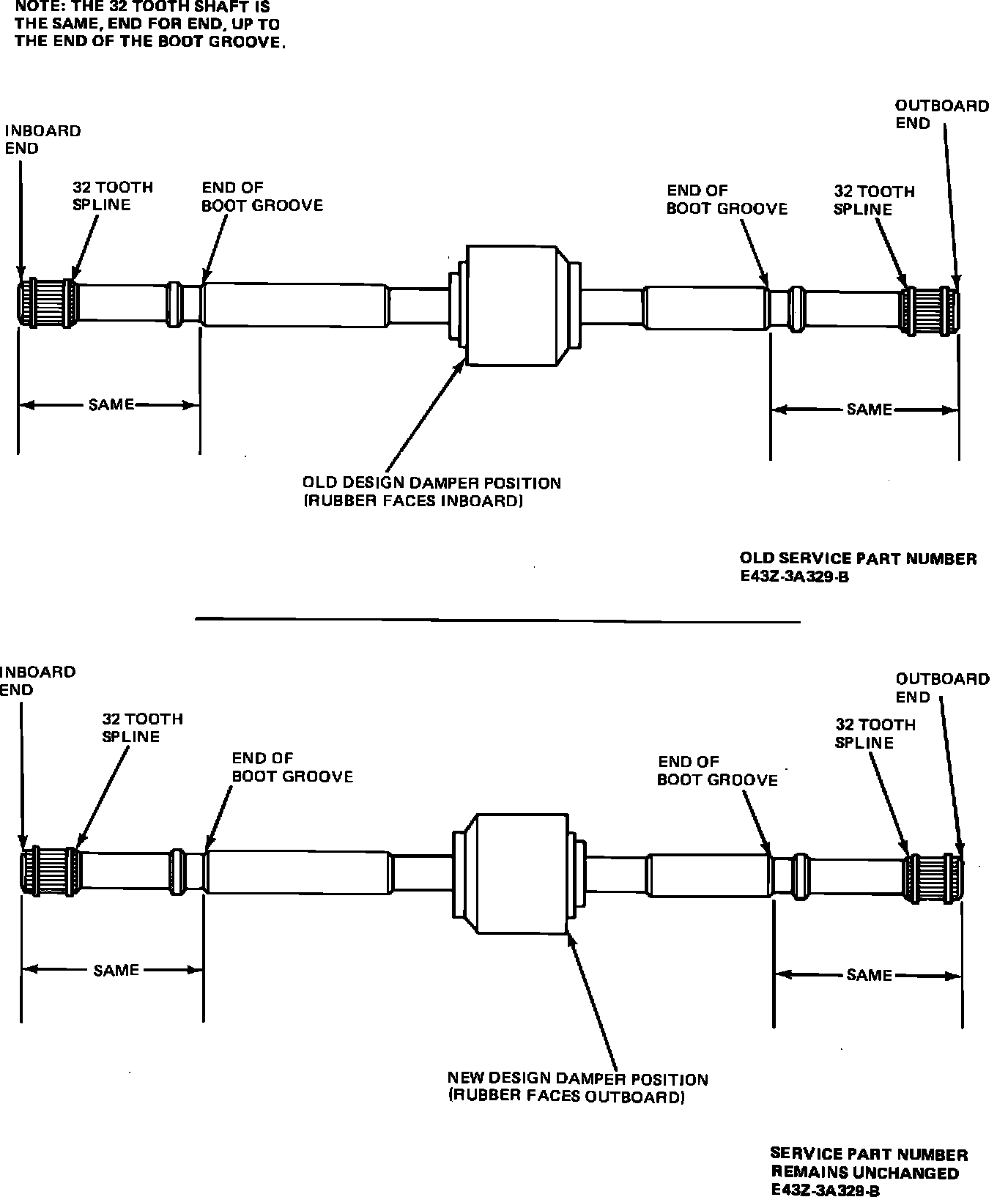

Figure 6 - Axle With Damper:

Refer to Figures 5 and 6 for current and past model applications.

PART NUMBER PART NAME CLASS

E43Z-3A329-C Right Hand
Interconnecting Shaft with
Damper RM
E43Z-3A329-B Right Hand
Interconnecting Shaft with
Damper C


OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: "INFORMATION ONLY"
