Auxiliary Main Jet/Pullover Valve Timing

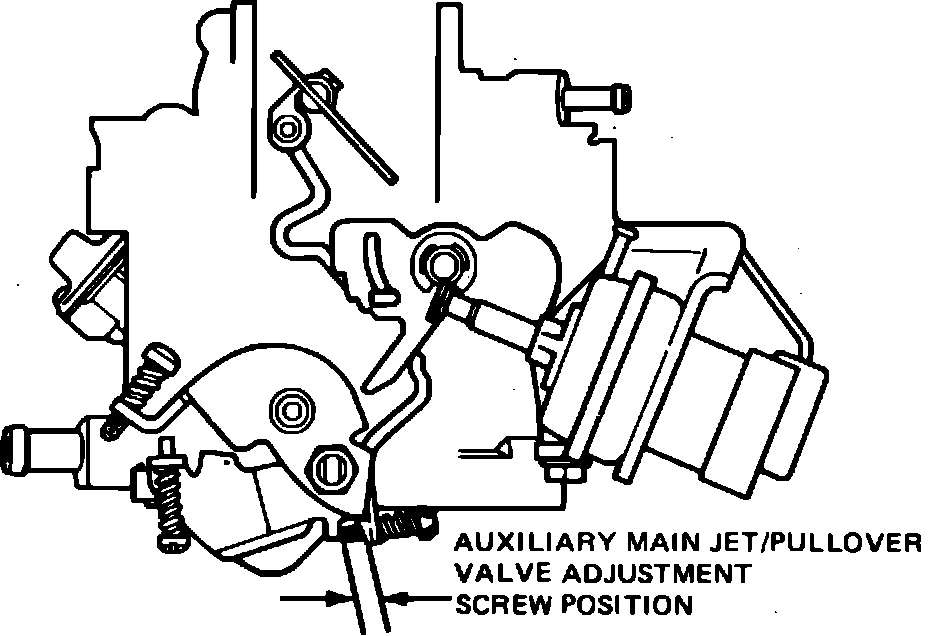

Fig. 7 Auxiliary main jet/pullover valve timing adjustment:

Fig. 7--Measure protrusion of adjustment screw at rear of throttle pickup lever. Adjust as necessary by turning screw until protrusion measures .335 - .355 inch.
