Starter Relay: Locations

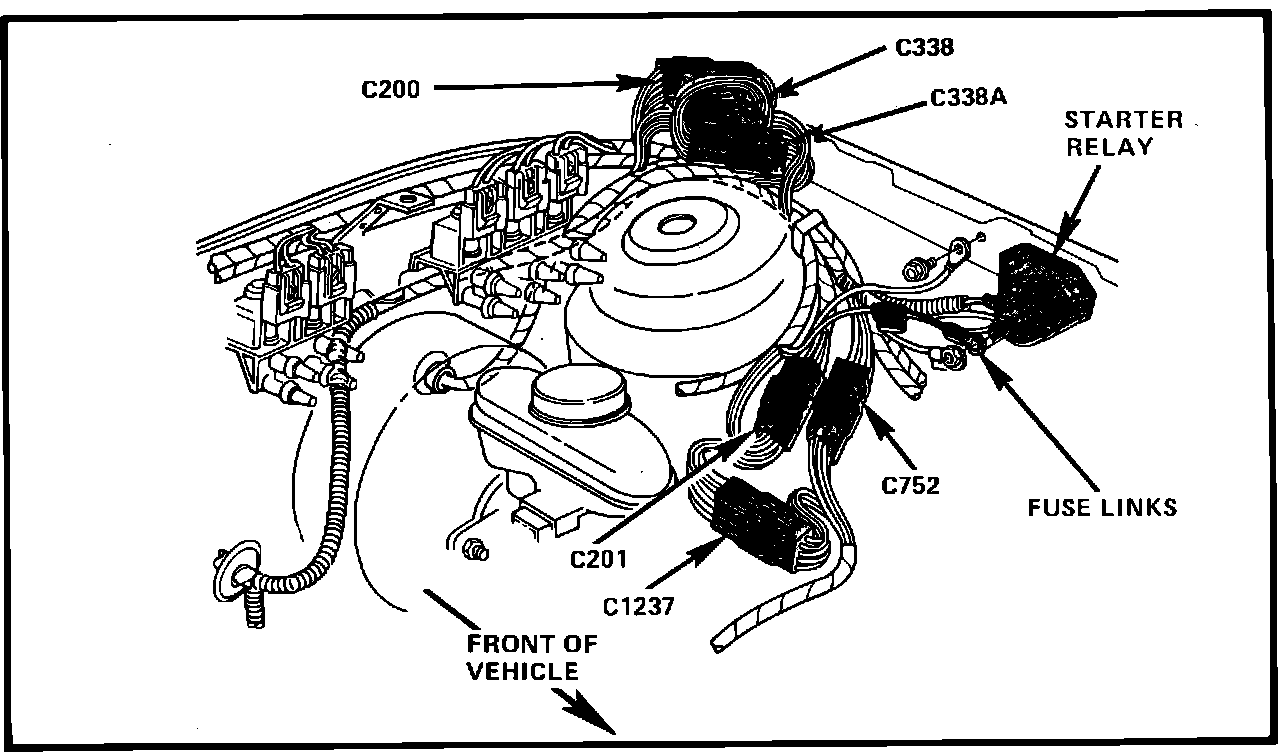

LH Side Of Engine Compartment:

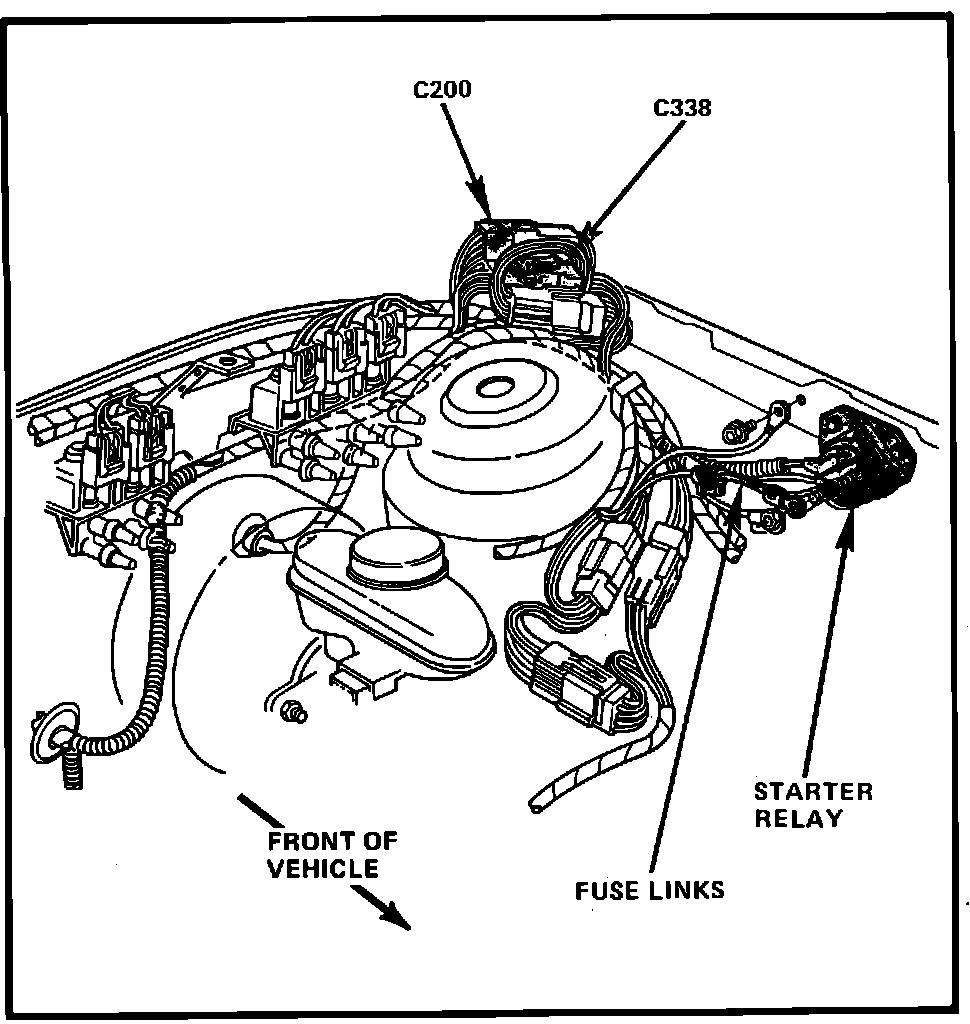

LH Side Of Engine Compartment:




Front LH Side Of Engine Compartment
