With Lamp Out Warning

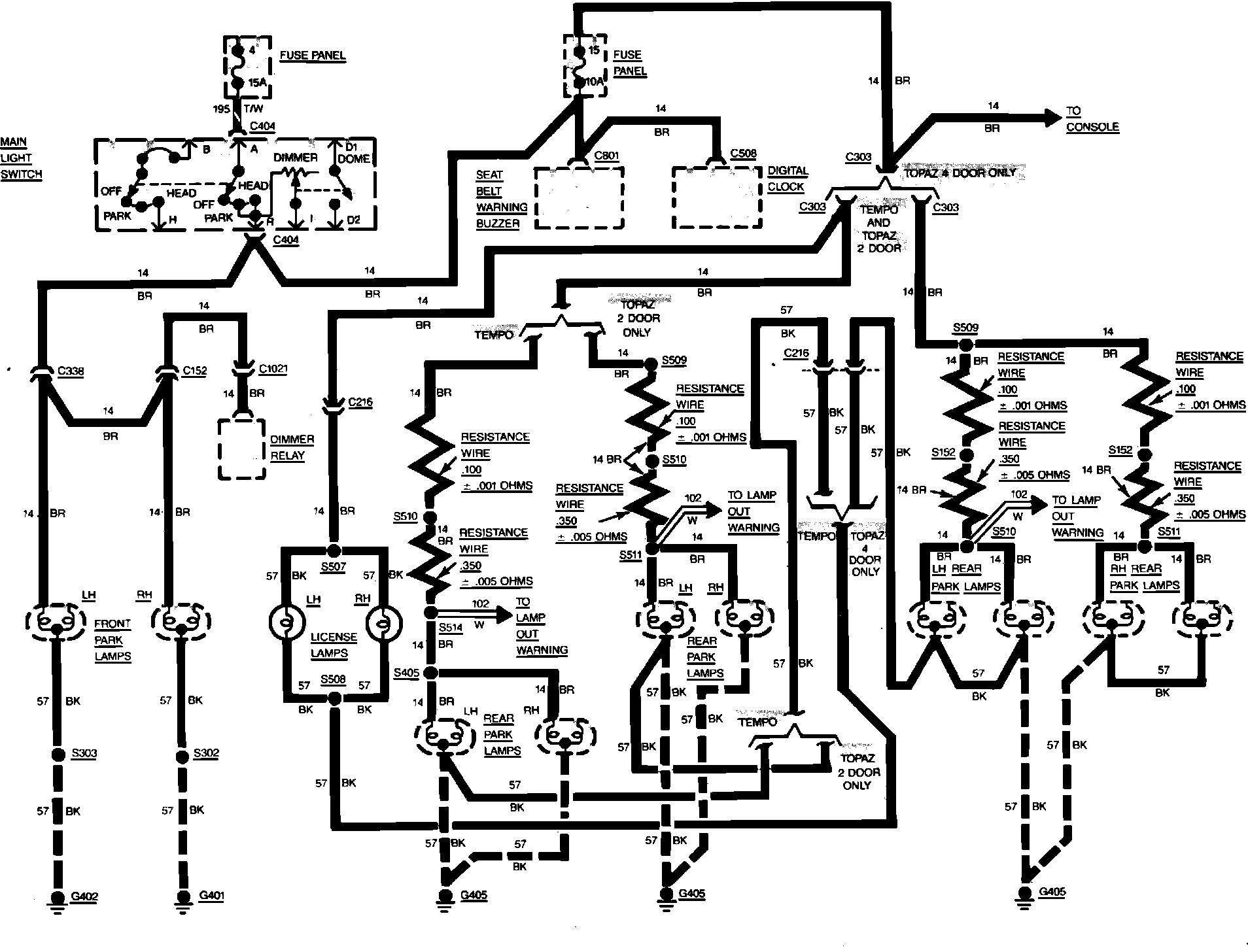

Fig. 22 License, Park & Rear Lamp Wiring Circuit. 1984 Tempo & Topaz With Lamp Out Warning:
