Gauges and Indicator Wiring Circuit

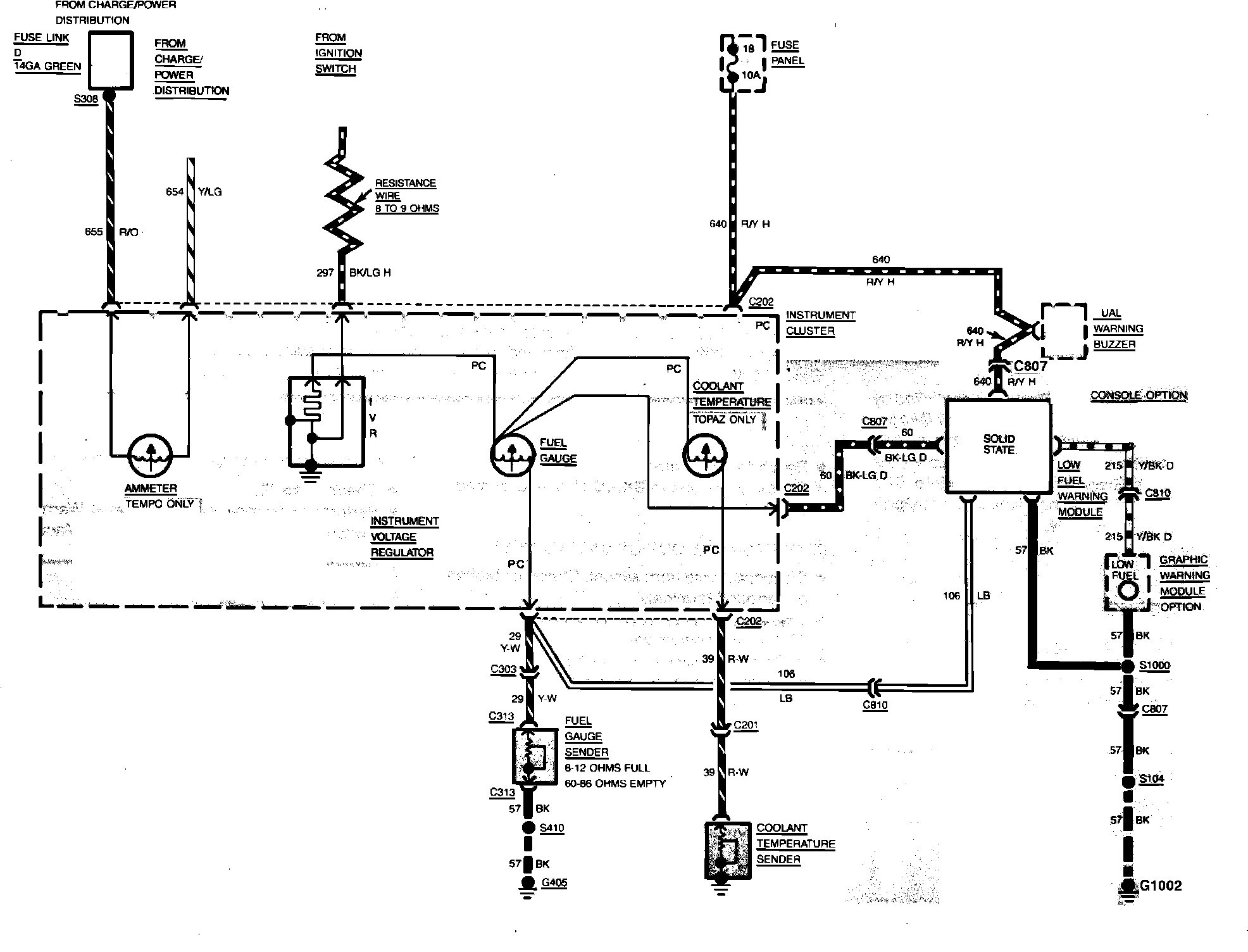

Fig. 13 Gauges & Low Fuel Warning Wiring Circuit. 1984 Tempo & Topaz:
