Instrument Panel and Warning Indicators

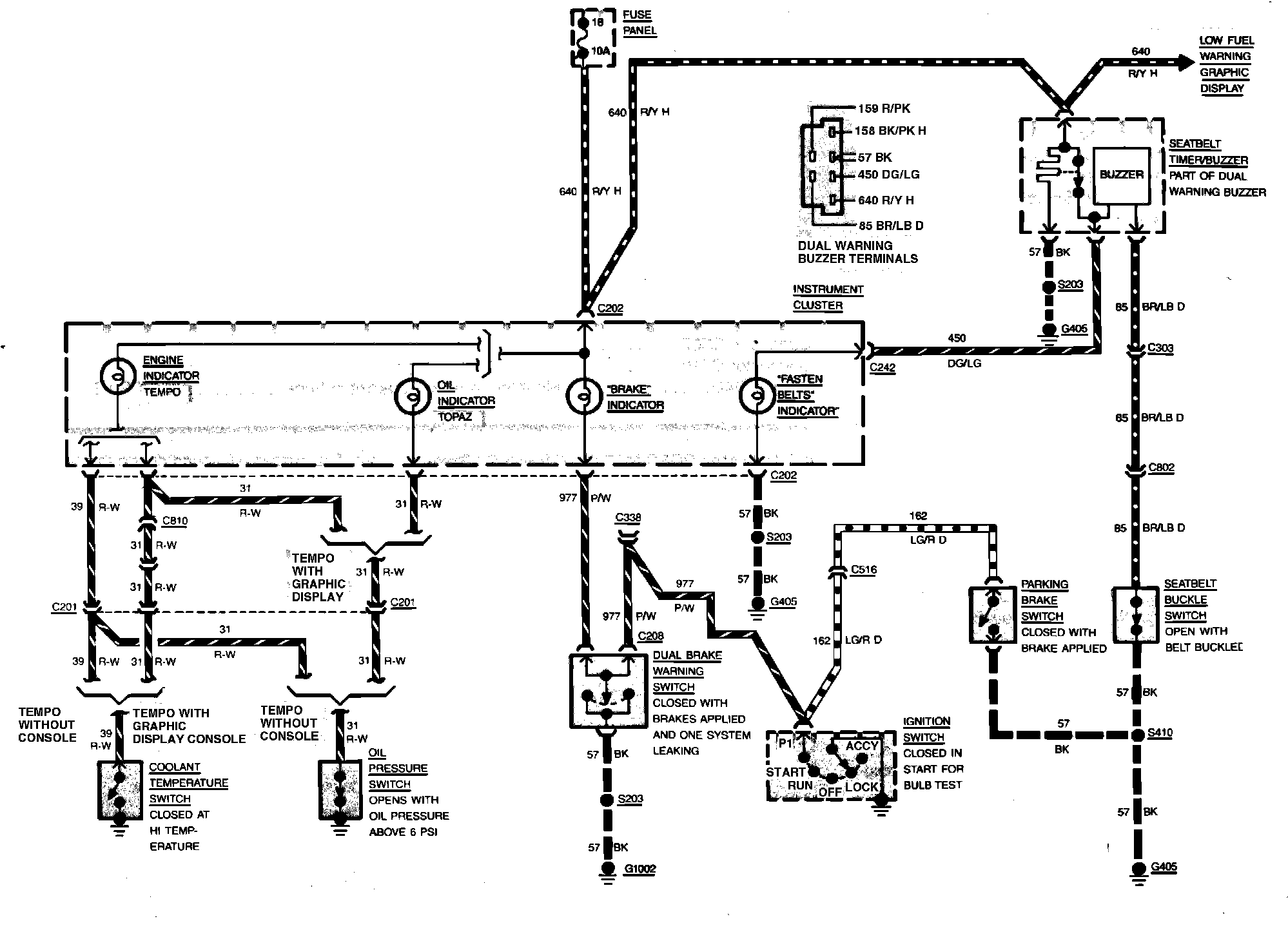

Fig. 20 Instrument Panel Warning Indicator Wiring Circuit. 1984 Tempo & Topaz:
