Electrical Diagrams

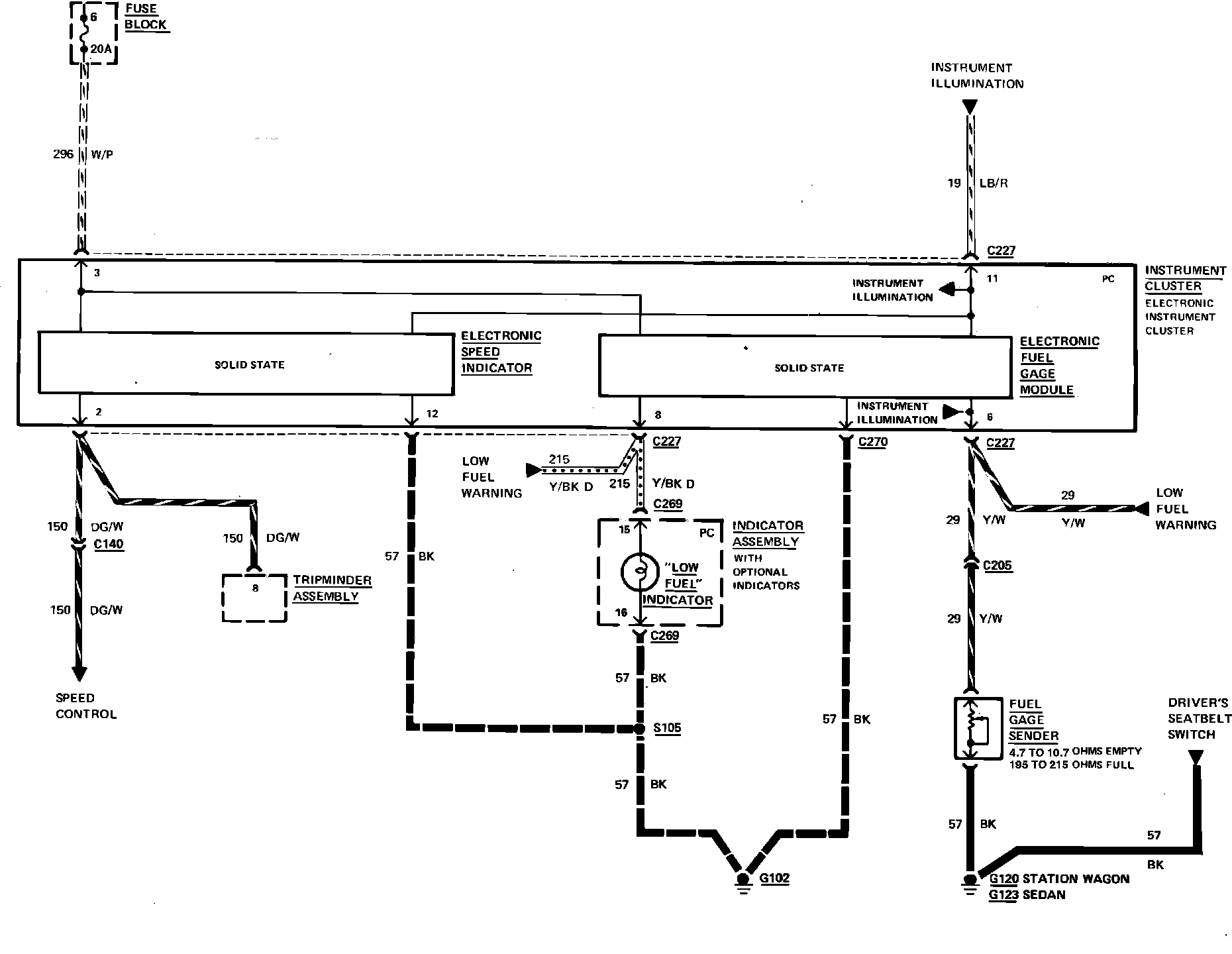

Fig. 31 Electronic Fuel Gauge & Speed Indicator Wiring Circuit. 1983-84 LTD & Marquis:
