Marquis V6-232 3.8L VIN C 2-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
Door/Trunk Ajar Indicator/Lamp
Door/Trunk Ajar Indicator/Lamp

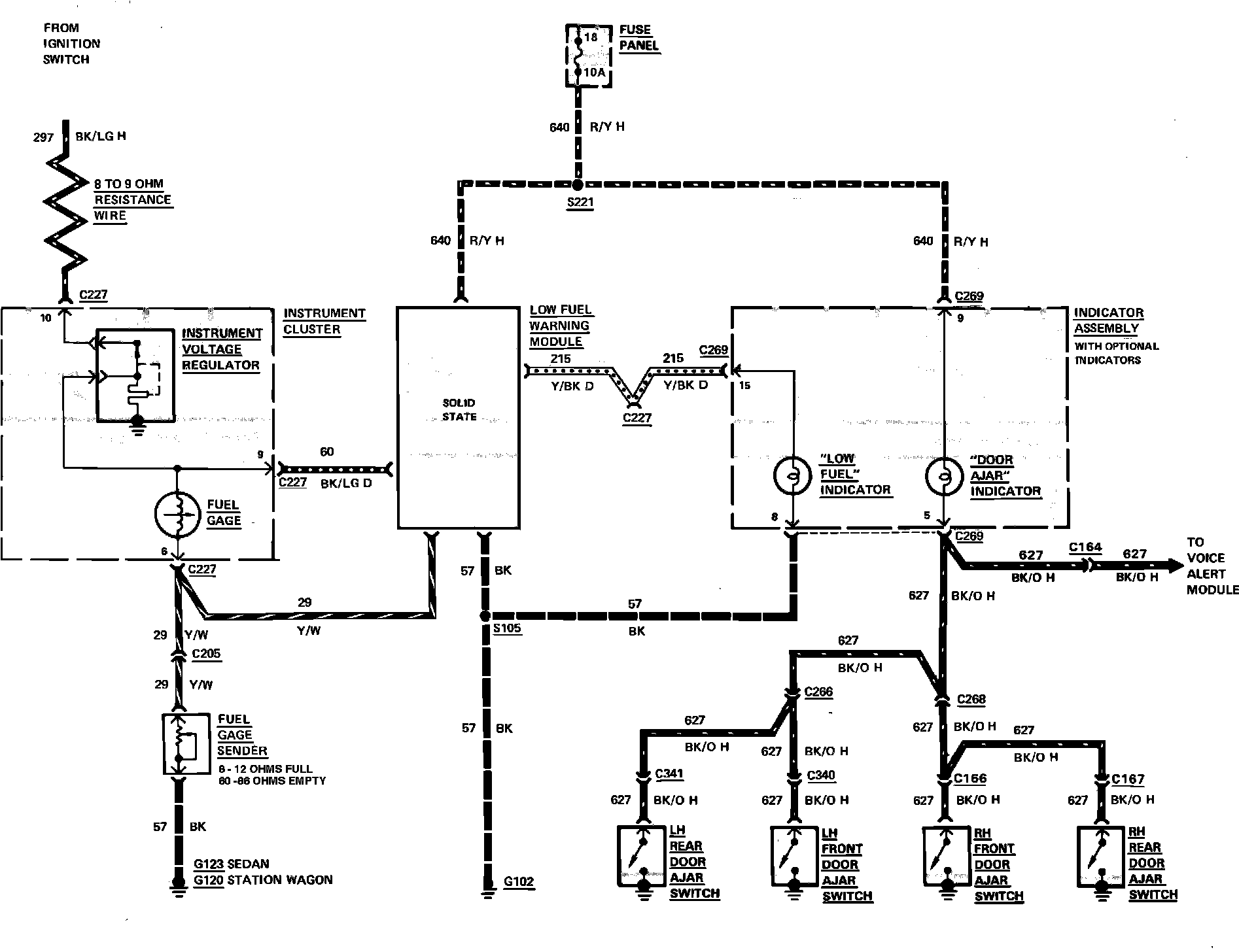

Fig. 28 Door Ajar Indicator, Fuel Gauge & Low Fuel Warning Wiring Circuit. 1984 LTD & Marquis:
