Stereo Radio Less Premium Sound
Stereo Radio Less Premium Sound

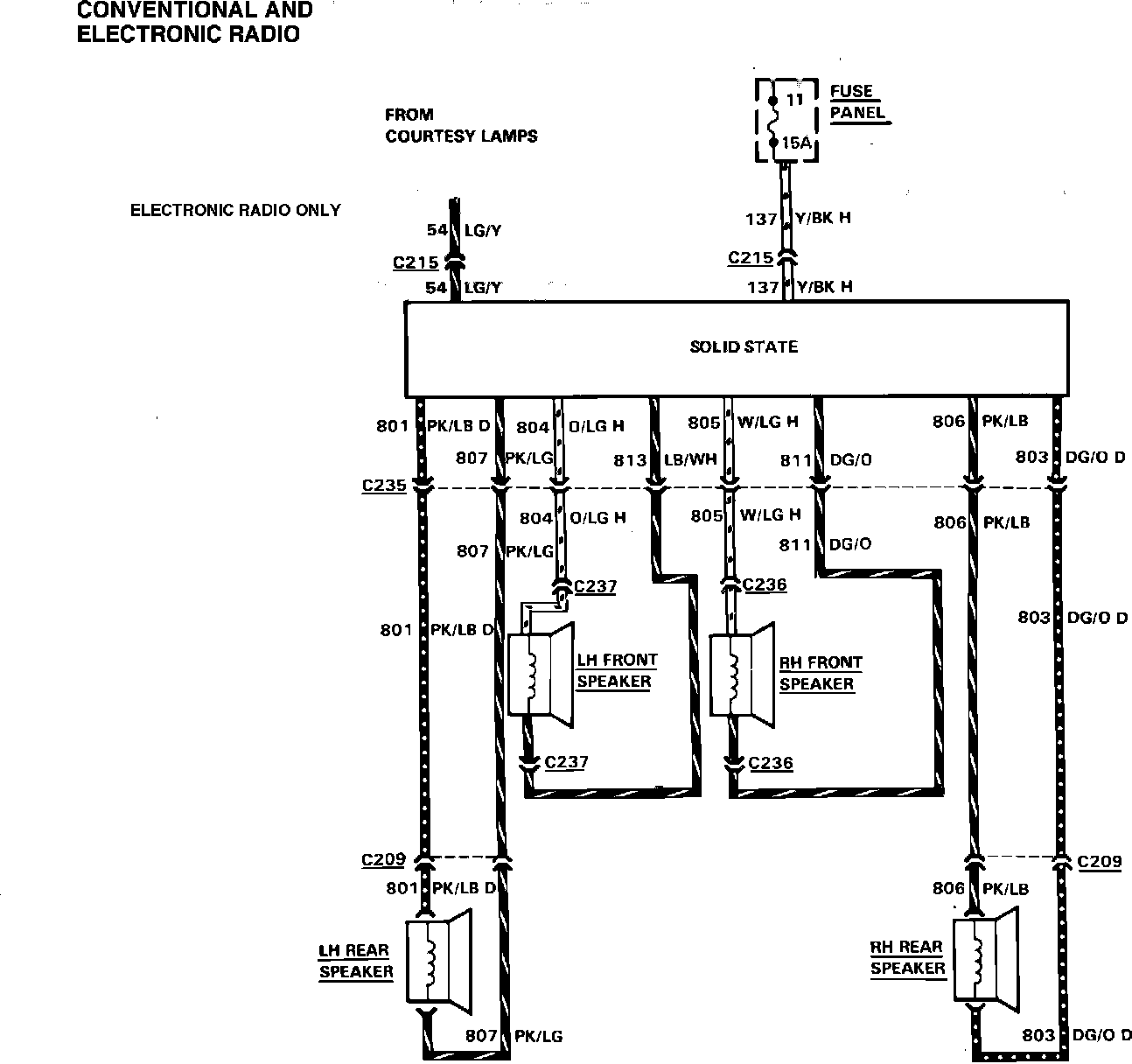

Fig. 70 Radio & Speaker Wiring Circuit. 1984 LTD & Marquis with Stereo Radio Less Premium Sound:
