Monaural System
Monaural System

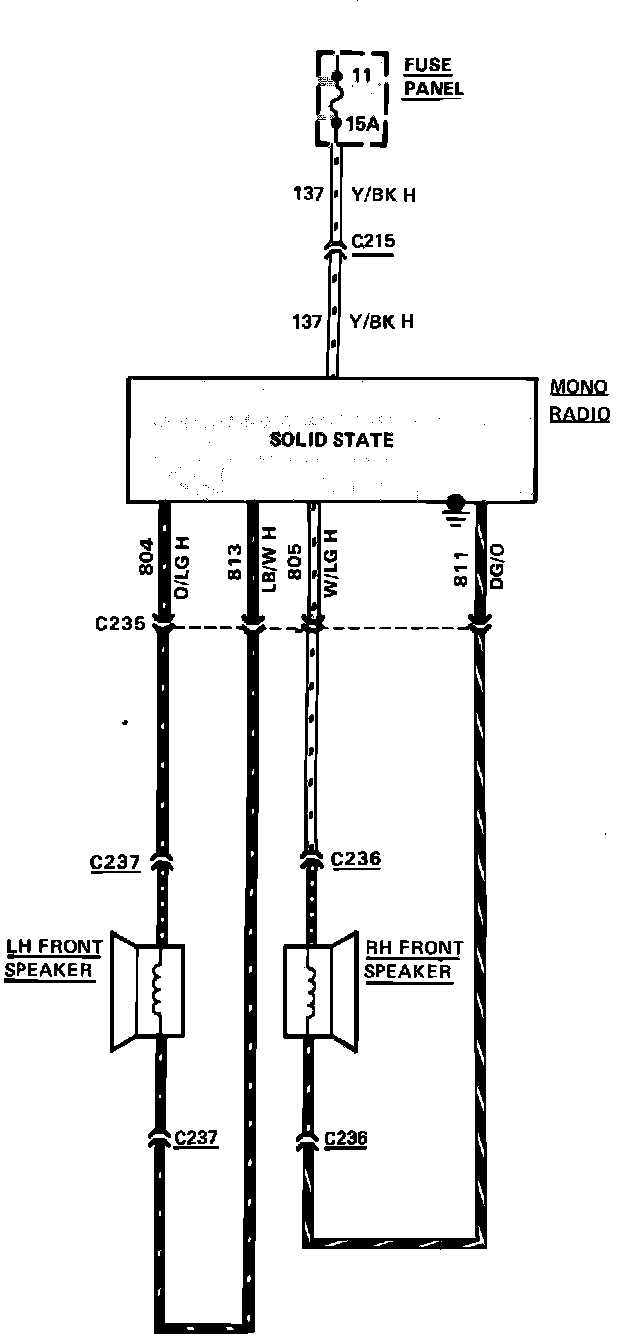

Fig. 67 Radio & Speaker Wiring Circuit. 1984 LTD & Marquis with Monaural Radio:
