Mercury
>>
1984
>>
Marquis V6-232 3.8L VIN 3 TBI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
Audible Warning Device
>>
Instrument Warning Indicator (Warning Chime or Voice Alert)
Instrument Warning Indicator (Warning Chime or Voice Alert)

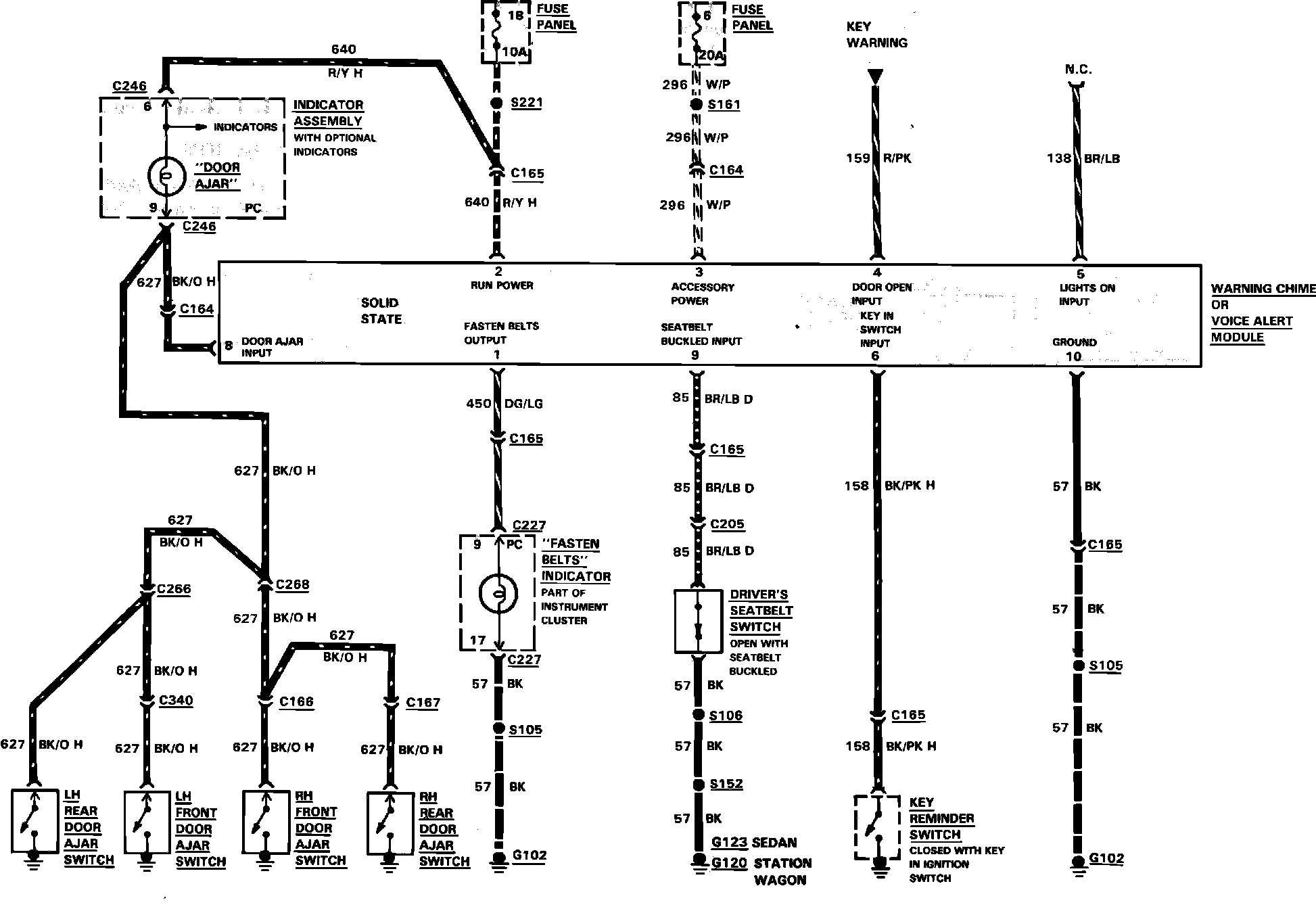

Fig. 50 Instrument Panel Warning Indicator Wiring Circuit (Warning Chime Or Voice Alert). 1984 LTD & Marquis:
