Mercury
>>
1984
>>
Marquis L4-140 2.3L VIN A 2-bbl
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Relays and Modules - Computers and Control Systems
>>
Engine Control Module
>>
Diagrams
>>
Connector Views
Connector Views

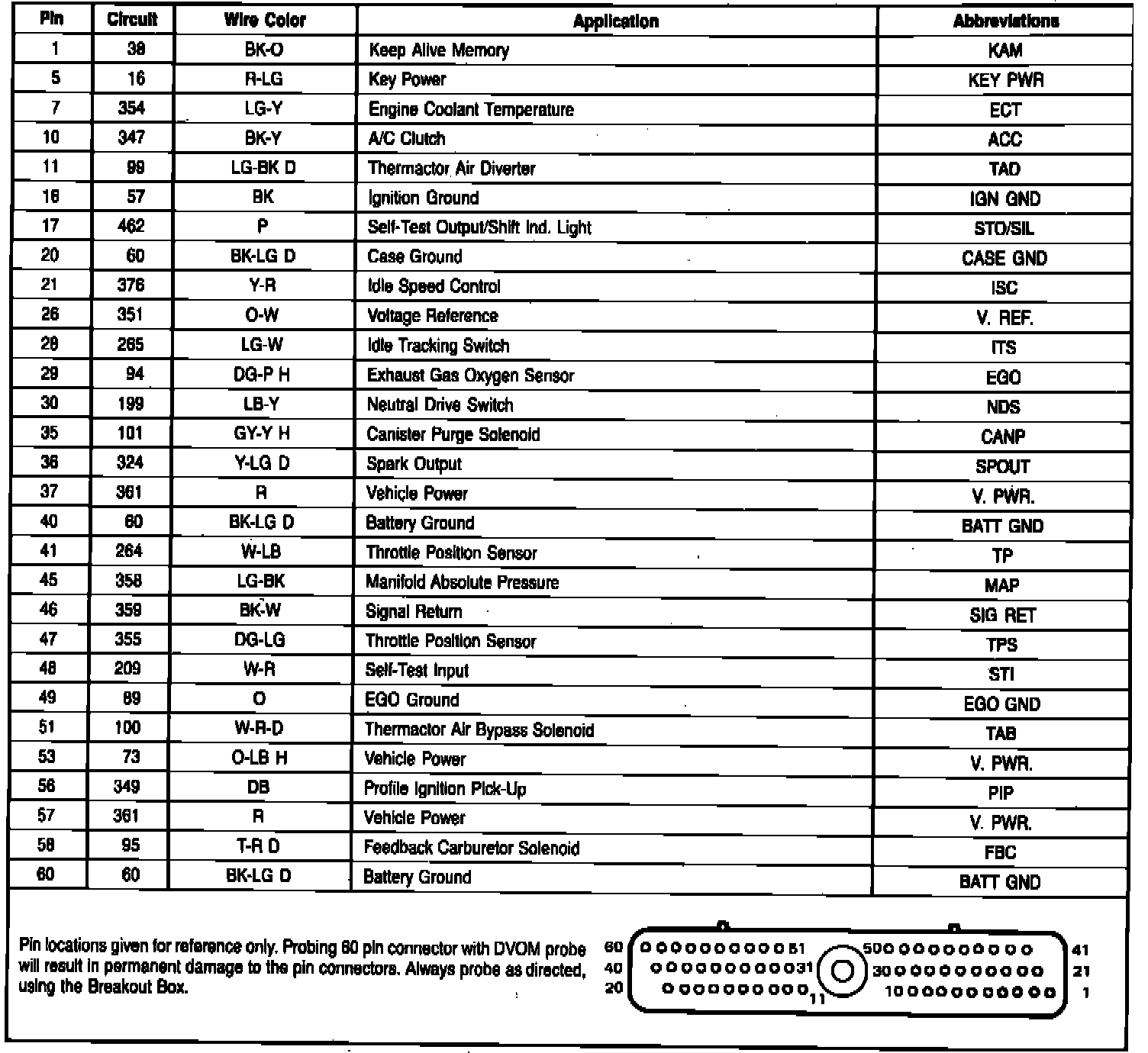

Fig. 59 EEC-IV Module Connector Pin usage. Overhead Cam Engine W/Feedback Carburetor:
