Lamp Out Indicator

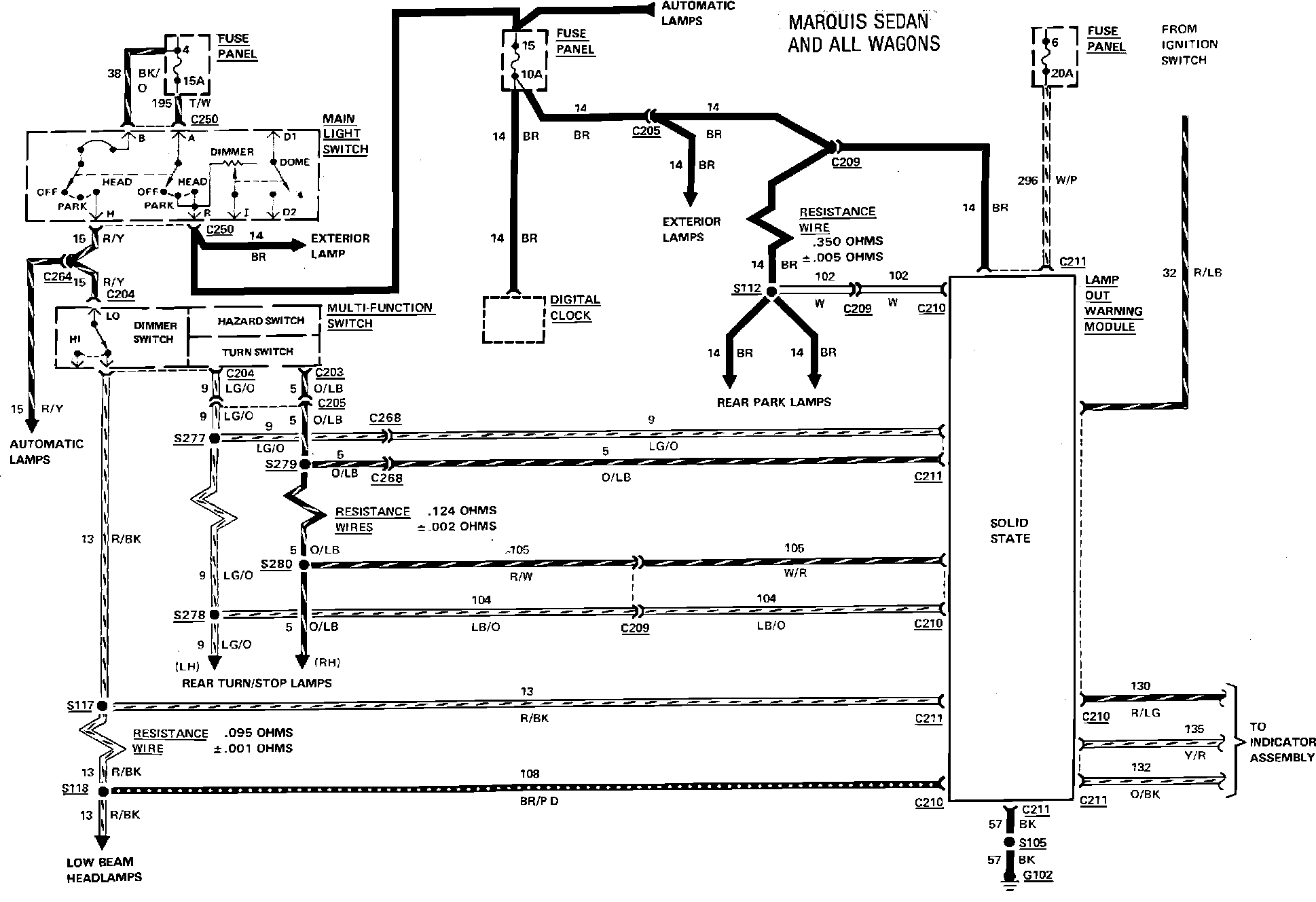

Fig. 48 Instrument Panel Warning Indicator Wiring Circuit (Lamp Out Warning)(Part 1 of 2). 1984 LTD wagon & Marquis:



Fig. 48 Instrument Panel Warning Indicator Wiring Circuit (Lamp Out Warning)(Part 2 of 2). 1984 LTD wagon & Marquis:
