Marquis L4-140 2.3L VIN A 2-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Headlamp
>>
Headlamp Control Module
>>
With Automatic Lamps & Delayed Exit System Wiring Circuit
With Automatic Lamps & Delayed Exit System Wiring Circuit

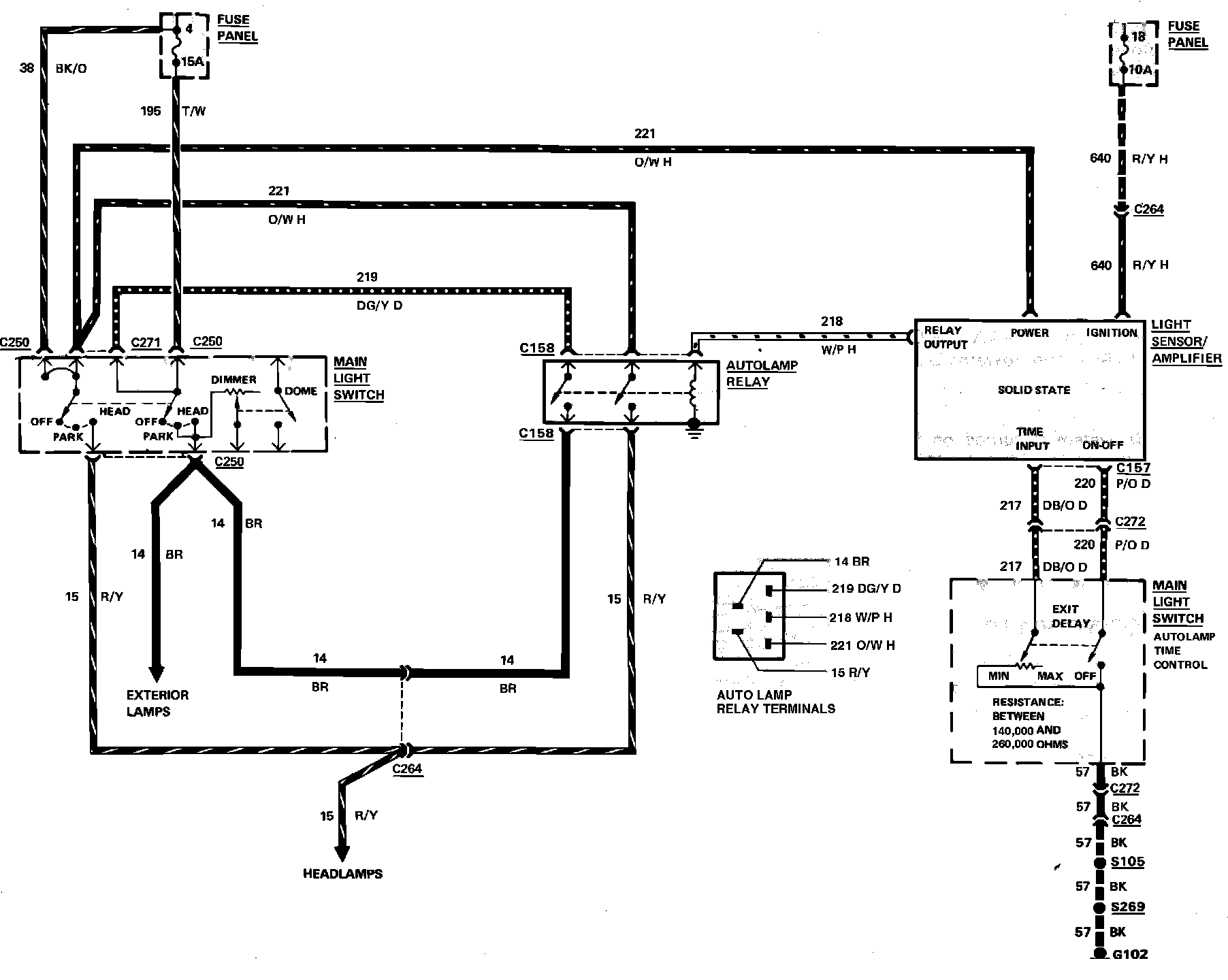

Fig. 13 Autolamp & Delayed Exit Wiring Circuit. 1984 LTD & Marquis:
