Instrument Warning Indicator (Brake, Eng., Liftgate & Seatbelt)

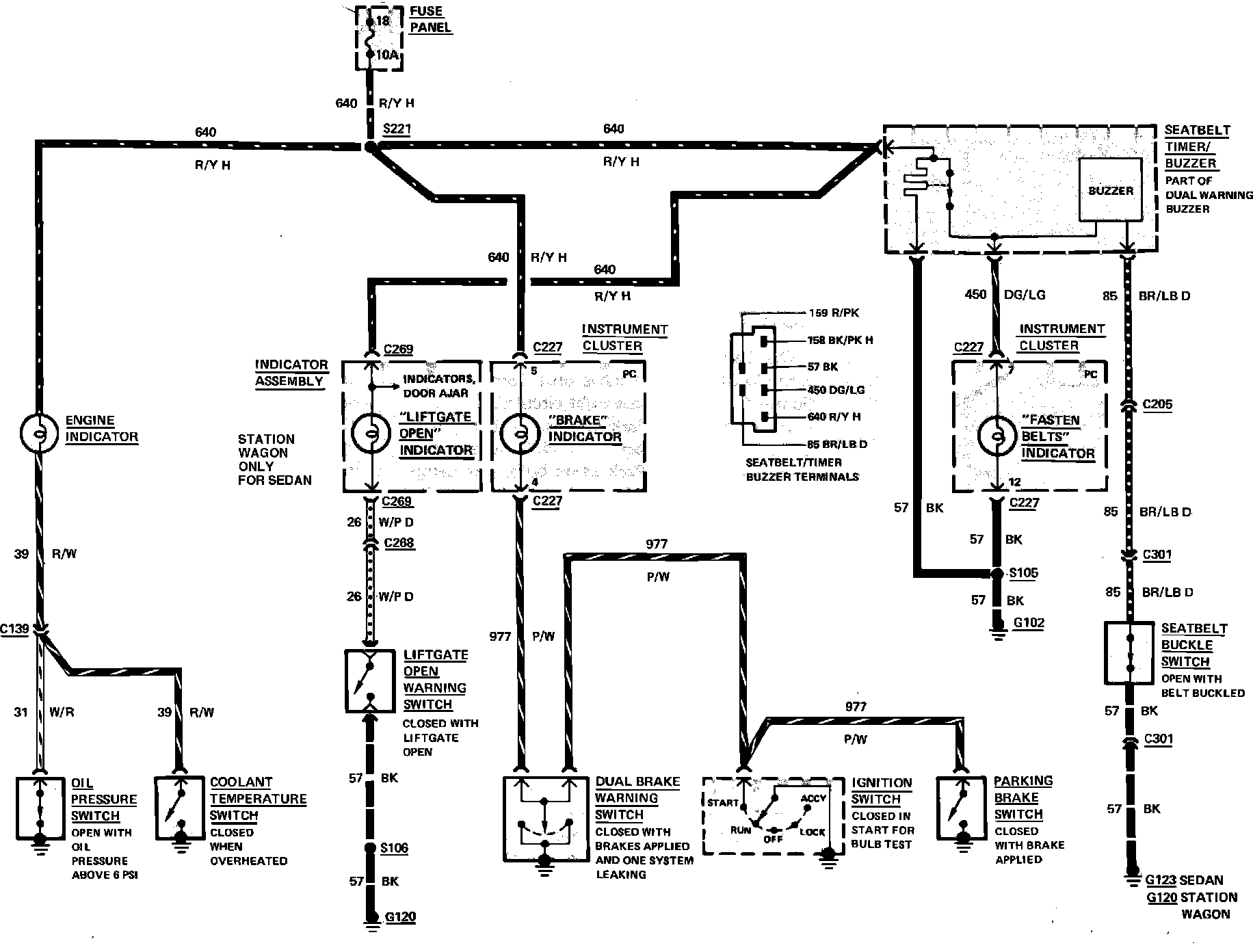

Fig. 45 Instrument Panel Warning Indicator Wiring Circuit (Brake, Engine, Liftgate & Seatbelt). 1984 LTD & Marquis:
