With Automatic Temperature Control (ATC)

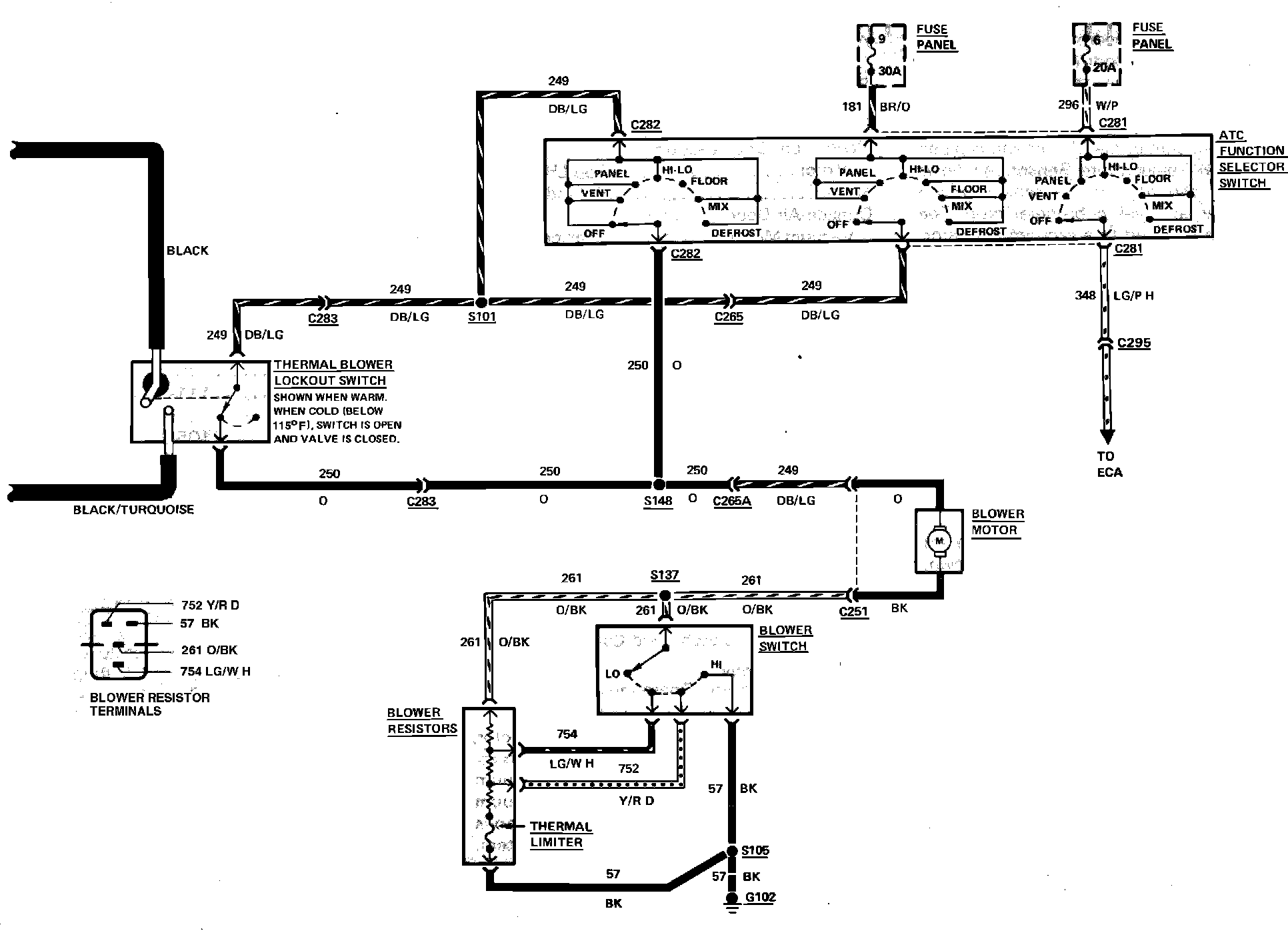

Fig. 11 Air Conditioning & Heater Wiring Circuit. 1984 LTD & Marquis with Automatic Temperature Control:
