8.Quarter Trim Applique - Replacement

Removal

1. Cover carpet, seats, and backlite panel to protect surfaces.
2. Remove backlite garnish moulding per instructions in section 7.

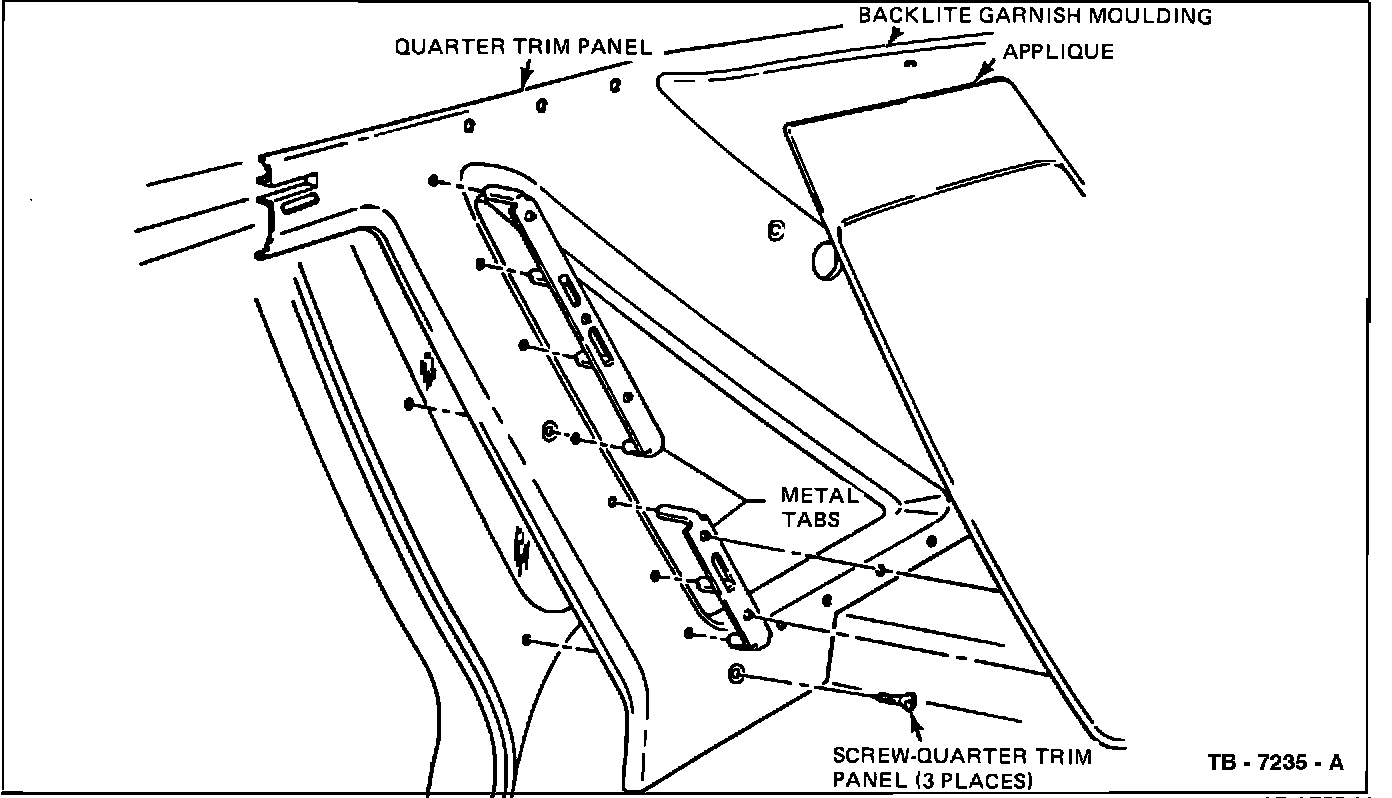

Figure 9:

3. Remove (3) screws from quarter trim panel and remove panel (Figure 9).
4. To remove applique panel bend all metal tabs back and separate applique panel from quarter trim panel.

Installation

1. Select applique and position into holes, bend metal tabs against panel, make sure that applique is secure (Figure 9).
2. Position quarter trim panel and secure with (3) screws.
3. Replace backlite garnish moulding per instructions in section 7.
4. Remove all protective covers.
