7.Backlite Garnish - Moulding - Replacement

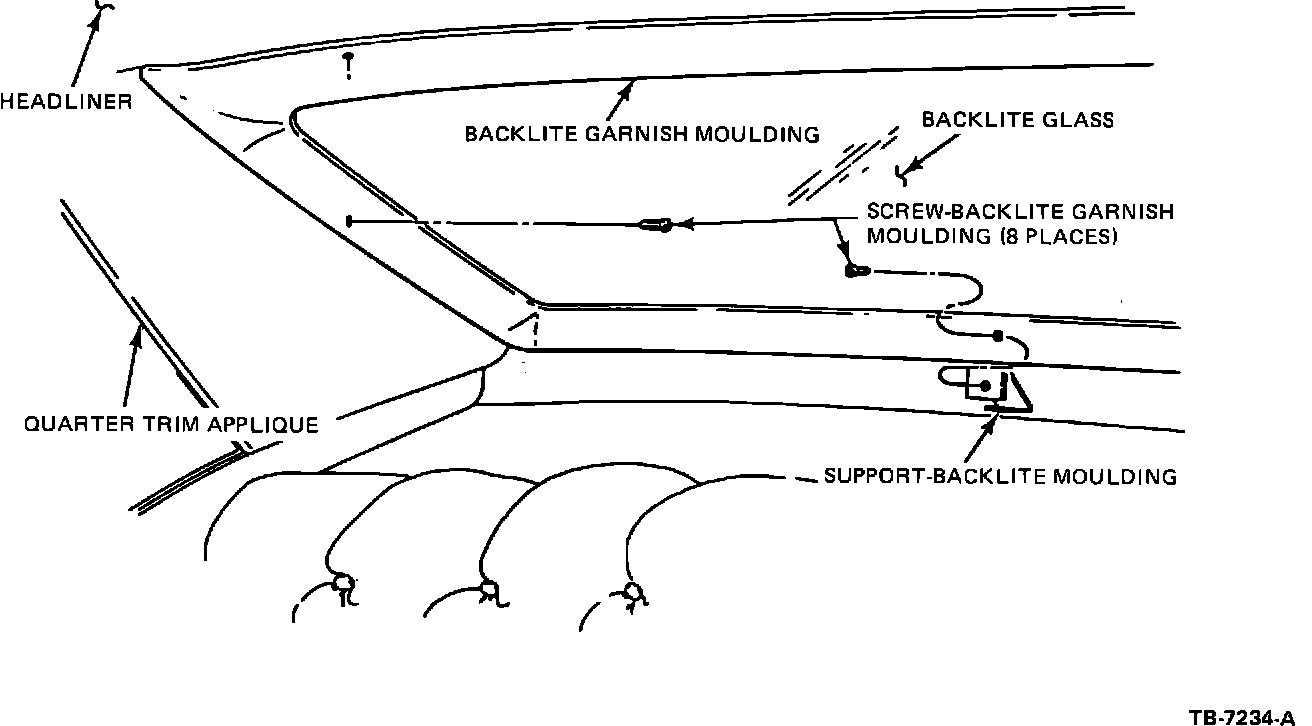

Figure 8:

Removal

1. Cover carpet, seats, and backlite panel to protect surfaces.
2. Remove (8) screws from around garnish moulding (Figure 8).
3. Remove moulding.

Installation

1. Select backlite garnish moulding and position into place.
2. Secure with (8) screws around backlite garnish moulding (Figure 8).
3. Remove all protective covers.
