With Automatic Transmission/Transaxle

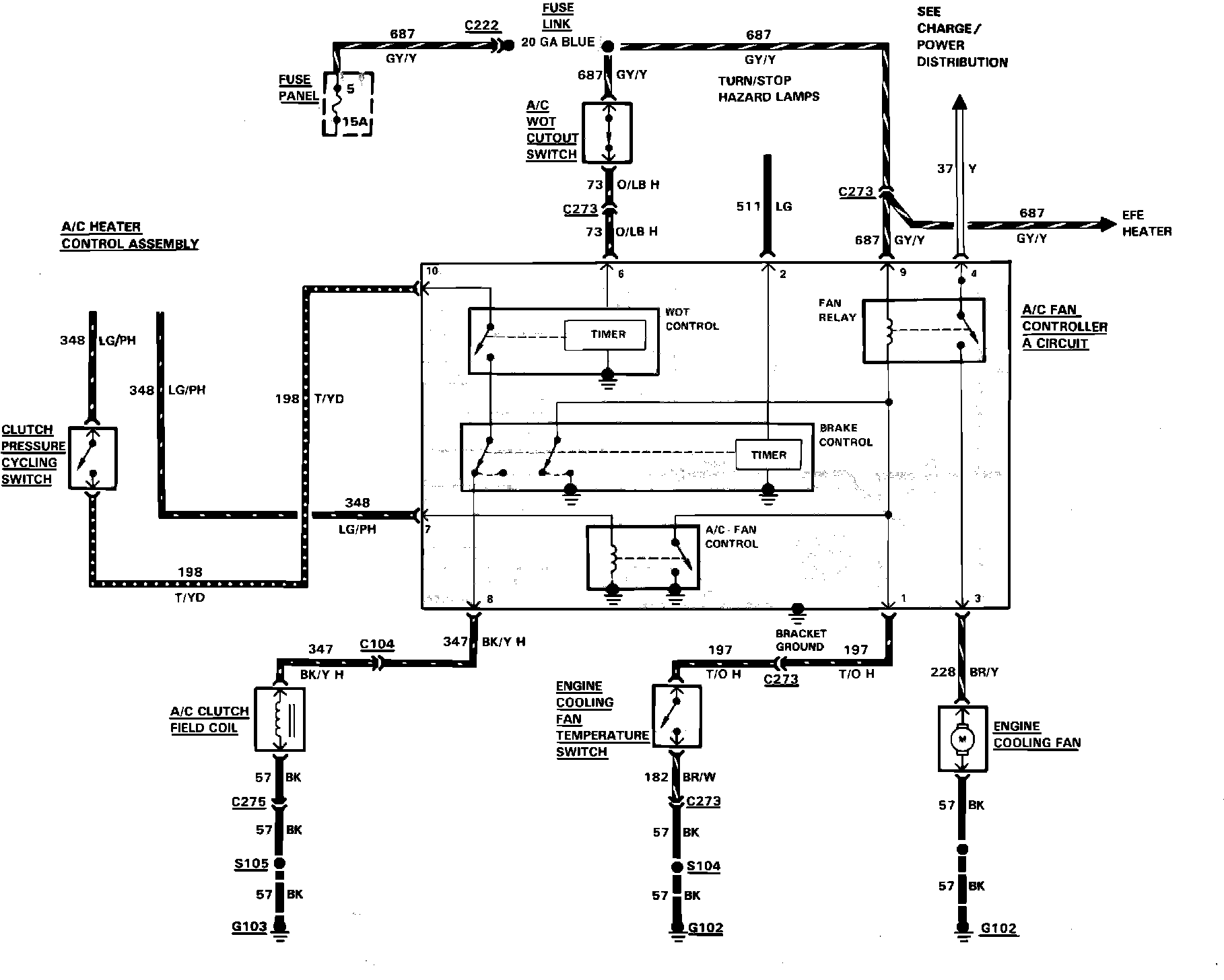

Fig. 14 Air conditioning, cooling fan & heater wiring circuit (Part 1 of 2). 1984 Escort, EXP & Lynx with automatic transaxle less fuel injection:

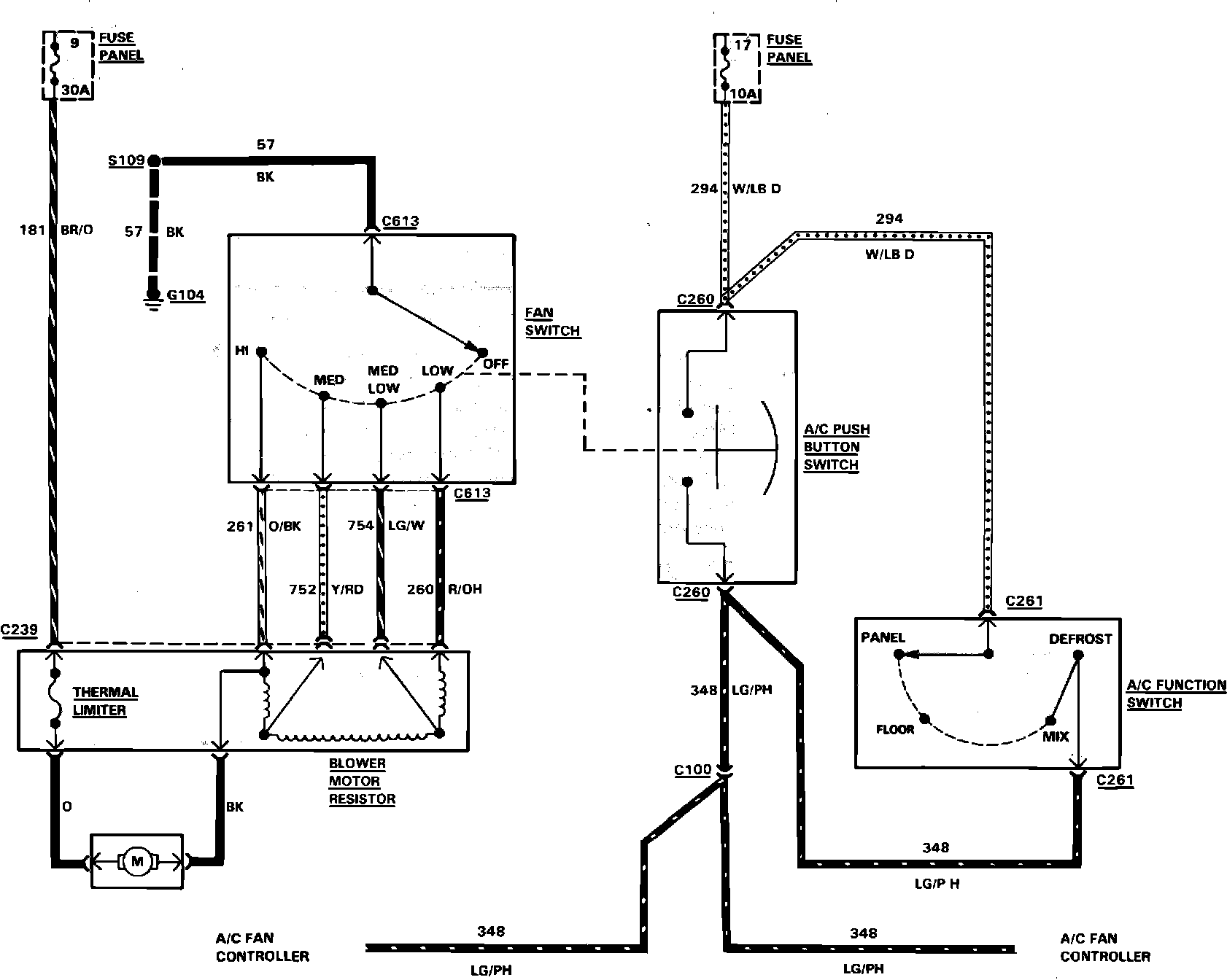

Fig. 14 Air conditioning, cooling fan & heater wiring circuit (Part 2 of 2). 1984 Escort, EXP & Lynx with automatic transaxle less fuel injection:
