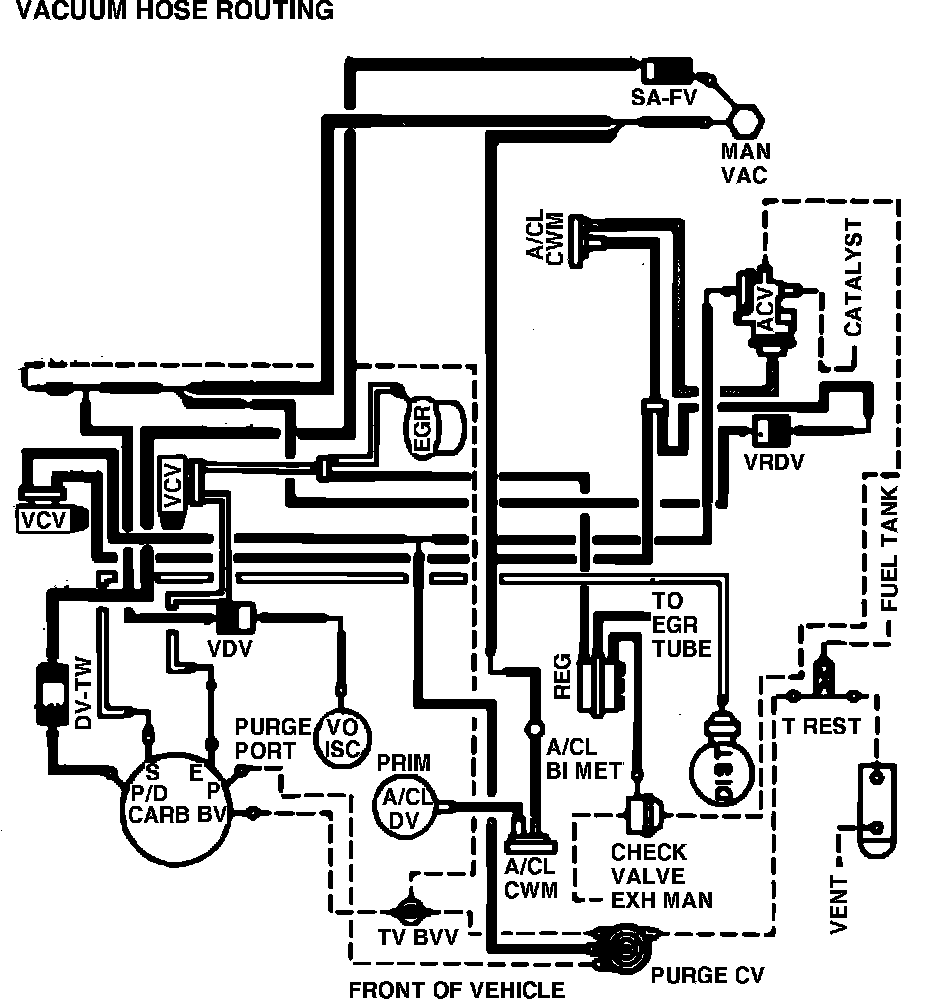

Fig. 11 Calib. Code 4-04S-R12 Calif.
Fig. 11 Calib. Code 4-04S-R12 Calif.
Fig. 11 1984 4-97.6 w/Auto. Trans. Calib. Code 4-04S-R12 Calif.:
