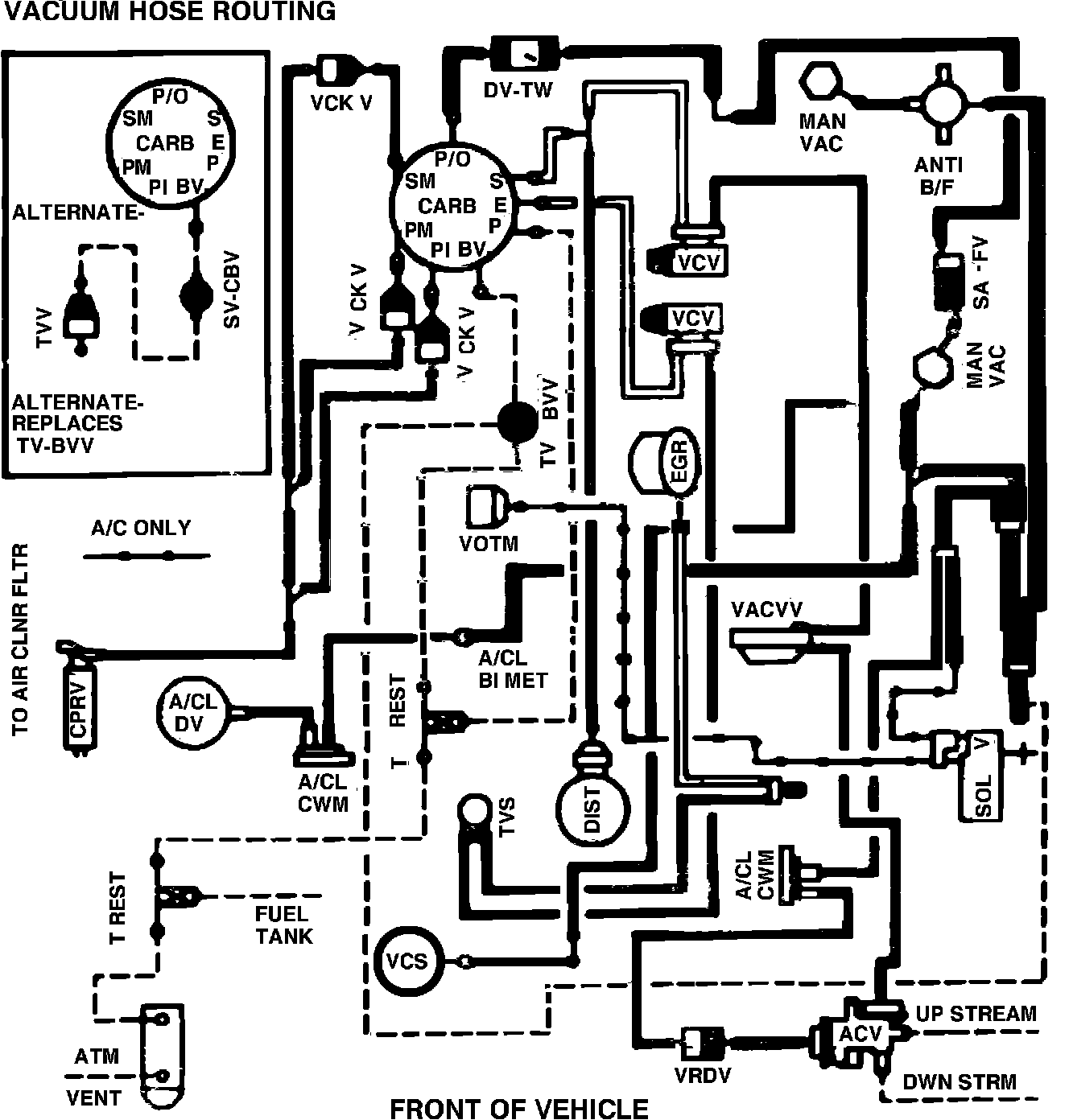

Fig. 1 Calib. Code 4-03A-R00 Federal
Fig. 1 Calib. Code 4-03A-R00 Federal
Fig. 1 Vacuum hose routing. 1984 4-97.6 w/man. trans. calib. code 4-03A-R00 Federal:
