Mercury
>>
1984
>>
Lynx L4-98 1.6L SOHC Turbo VIN 8 FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
System Diagram
>>
Escort, EXP & Lynx With Console & Graphic Display Module
Escort, EXP & Lynx With Console & Graphic Display Module

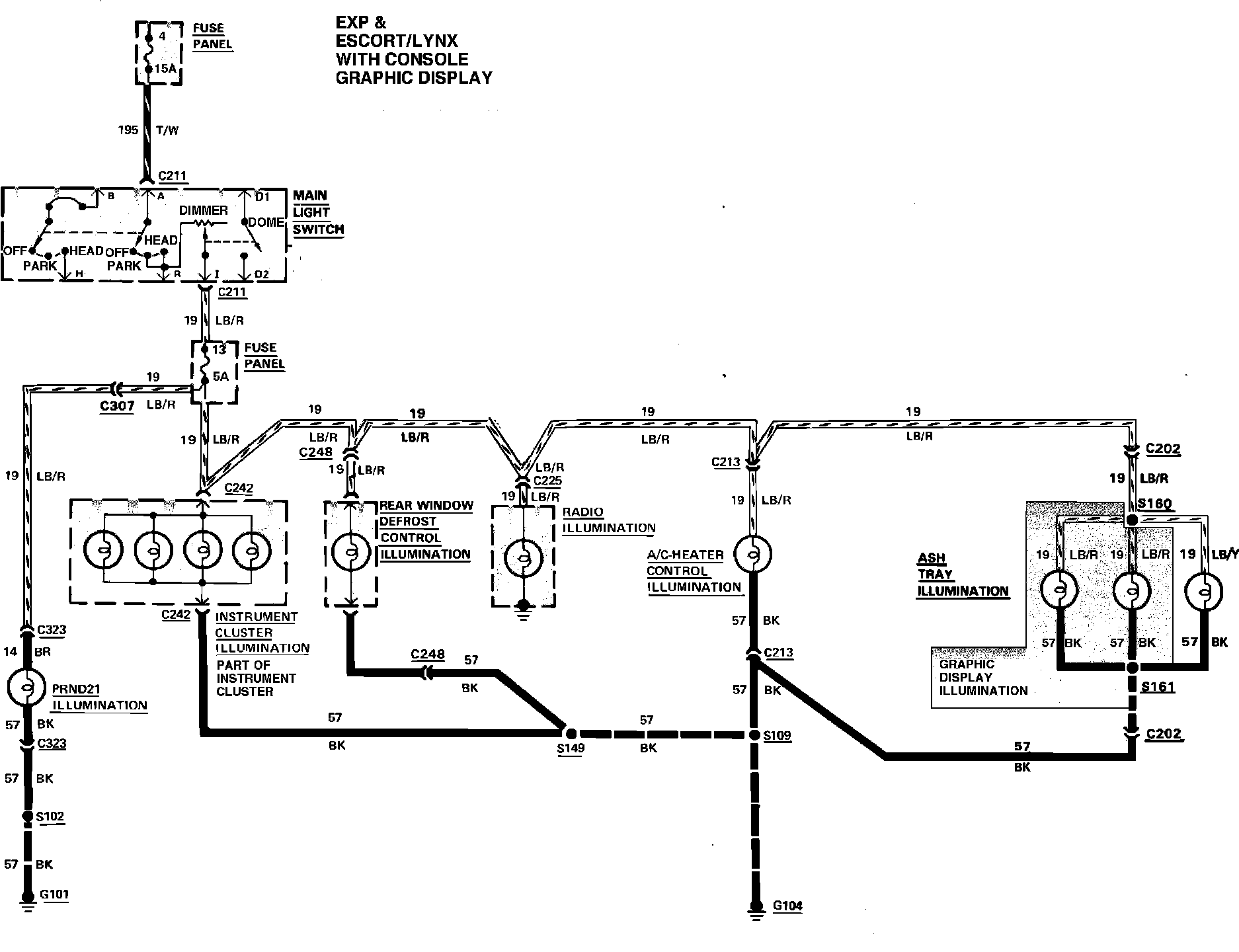

Fig. 62 Instrument panel illumination wiring circuit. 1984 Escort, EXP & Lynx with console & graphic display module:
