Electrical Diagrams

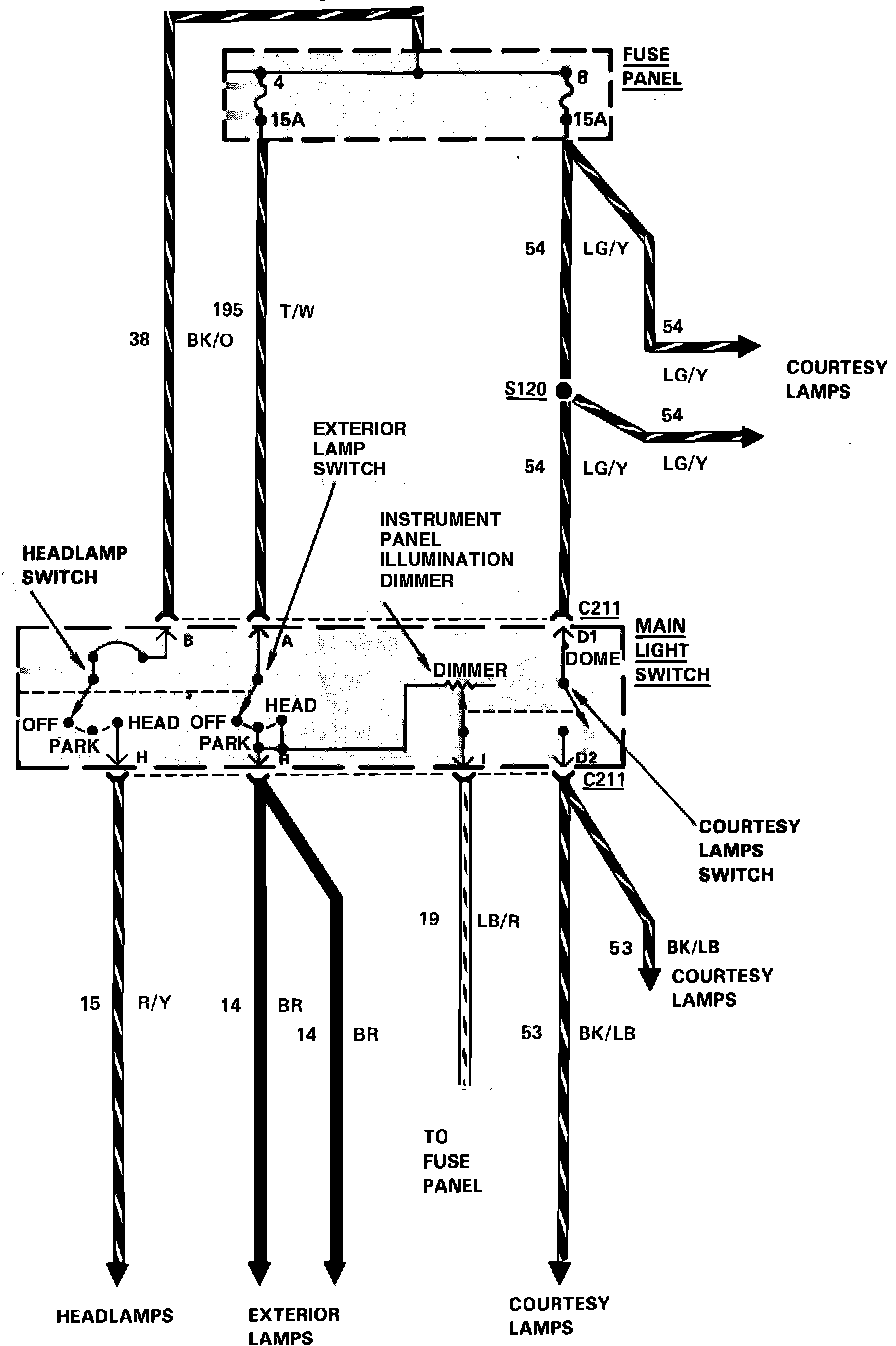

Fig. 47 Headlamp switch power distribution wiring circuit. 1984 Escort, EXP & Lynx:
