Mercury
>>
1984
>>
Lynx L4-122 2.0L DSL VIN H FI
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Lighting and Horns
>>
Hazard Warning Switch
>>
Diagrams
>>
Electrical Diagrams
>>
4 Door Models
4 Door Models

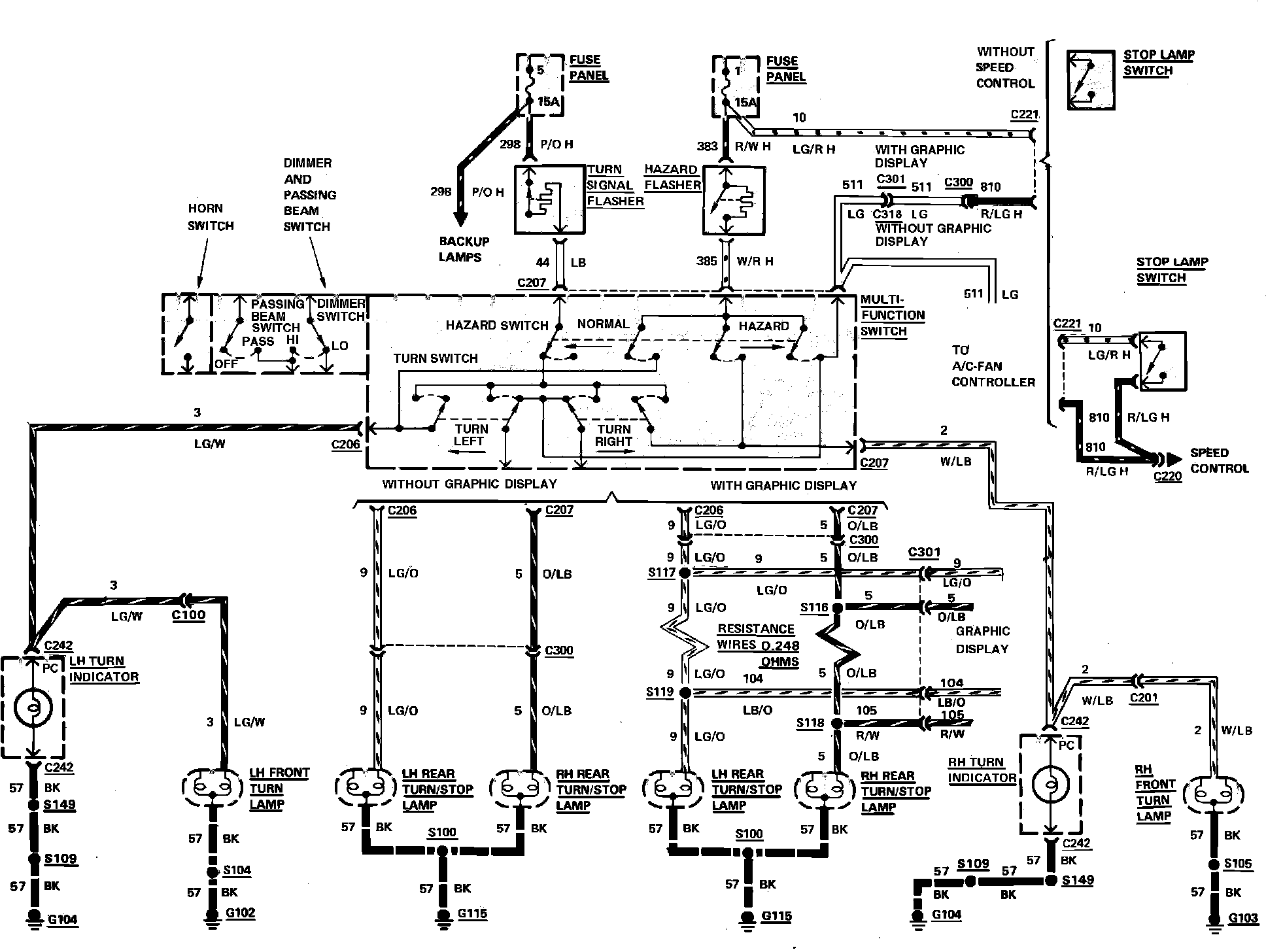

Fig. 101 Stop, Turn & Hazard lamp wiring circuit. 1984 Escort & Lynx 4 door models:
