Charge and Power Distribution

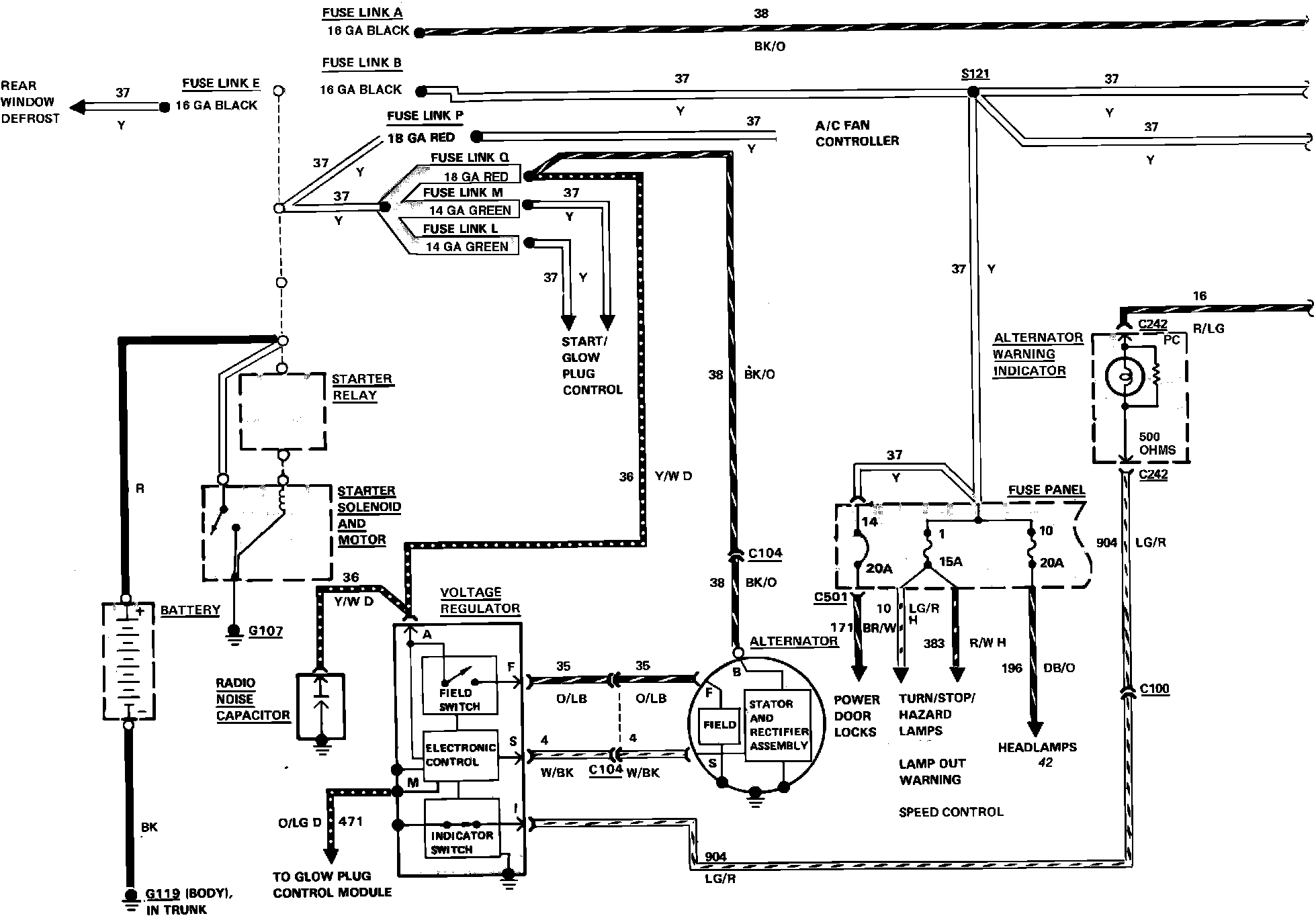

Fig. 22 Charging system & power distribution wiring circuit (Part 1 of 2). 1984 Escort & Lynx with diesel engine:

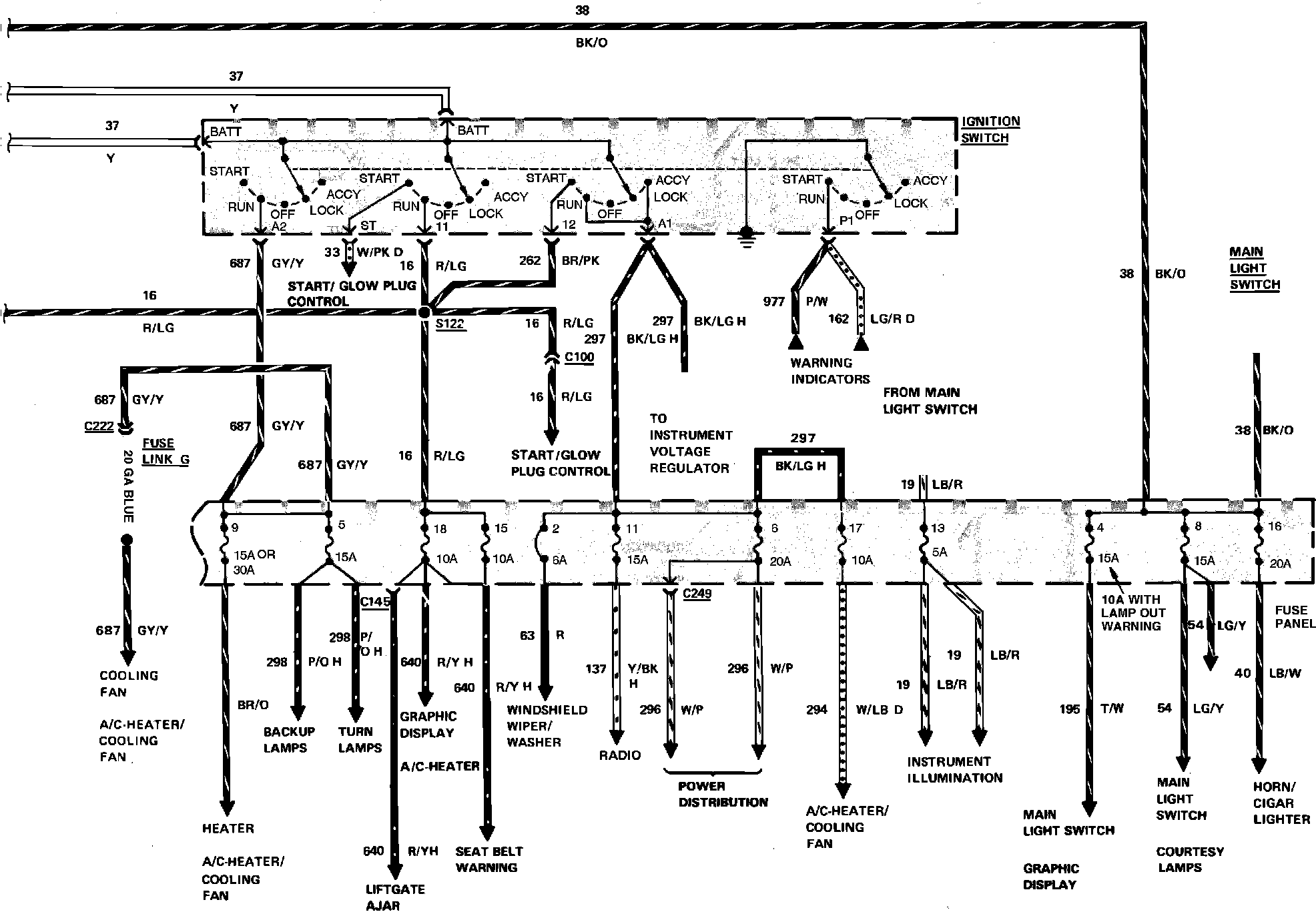

Fig. 22 Charging system & power distribution wiring circuit (Part 2 of 2). 1984 Escort & Lynx with diesel engine:
