Less Graphic Display

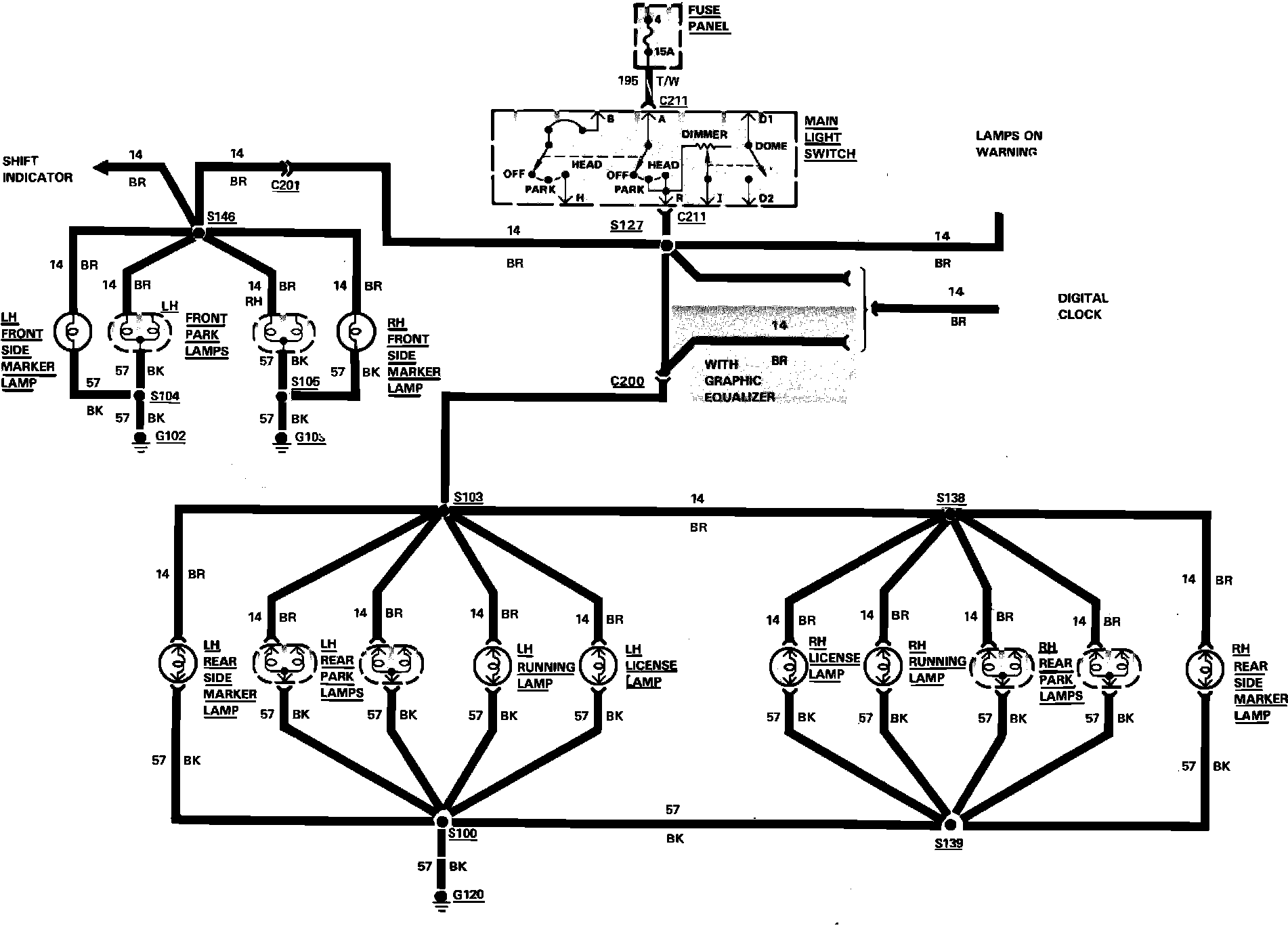

Fig. 72 License, marker & park lamp wiring circuit. 1984 EXP less graphic display:
