Tachometer Wiring Circuit

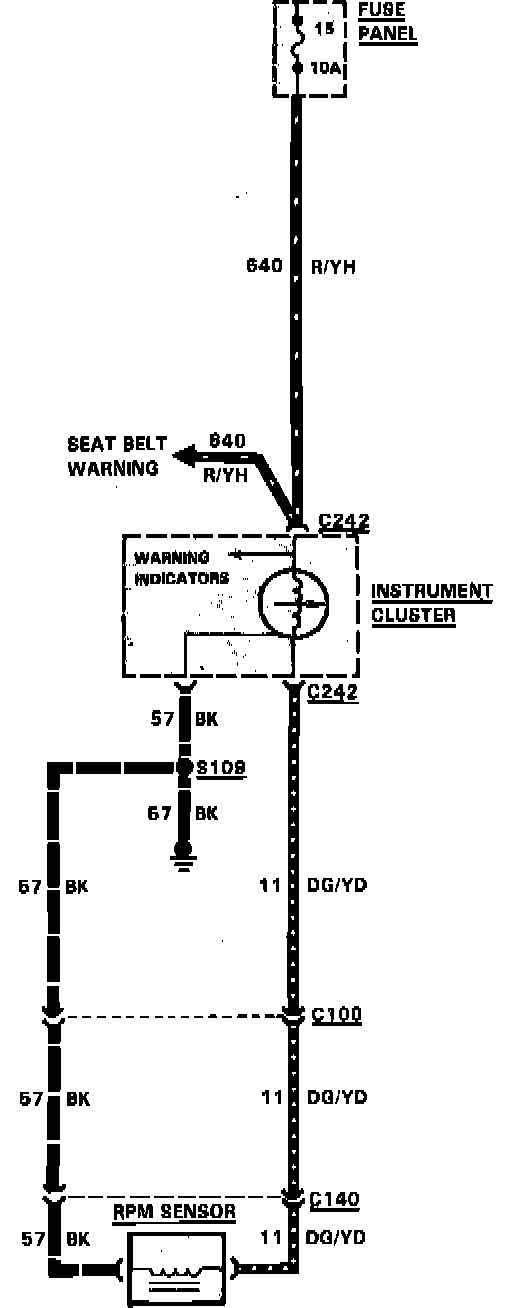

Fig. 103 Tachometer wiring circuit. 1984 Escort & Lynx with diesel engine:
