Instrument Panel and Warning Indicators

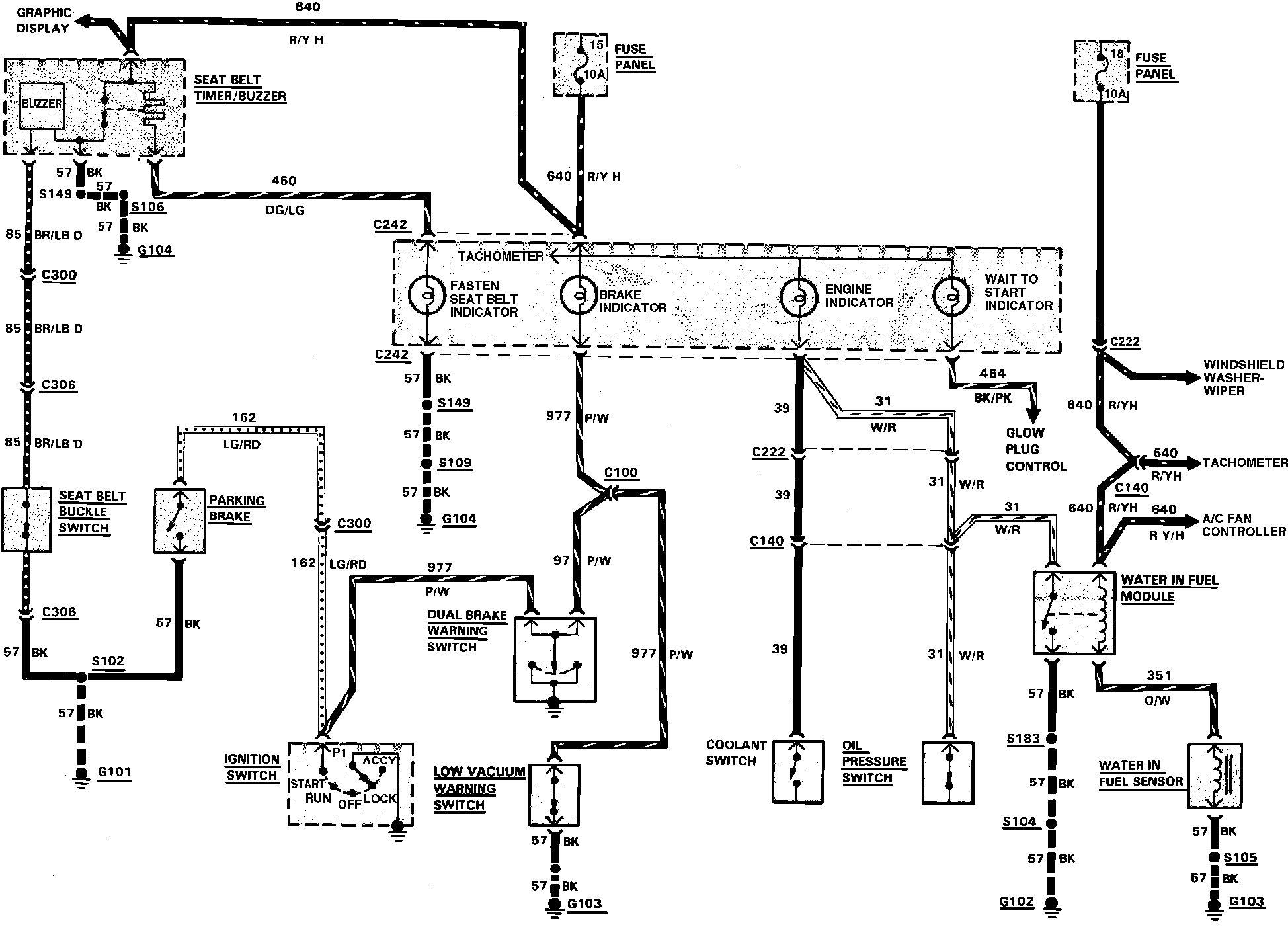

Fig. 68 Instrument panel warning indicator wiring circuit. 1984 Escort & Lynx with diesel engine:
