Graphic Warning Module Wiring Circuit

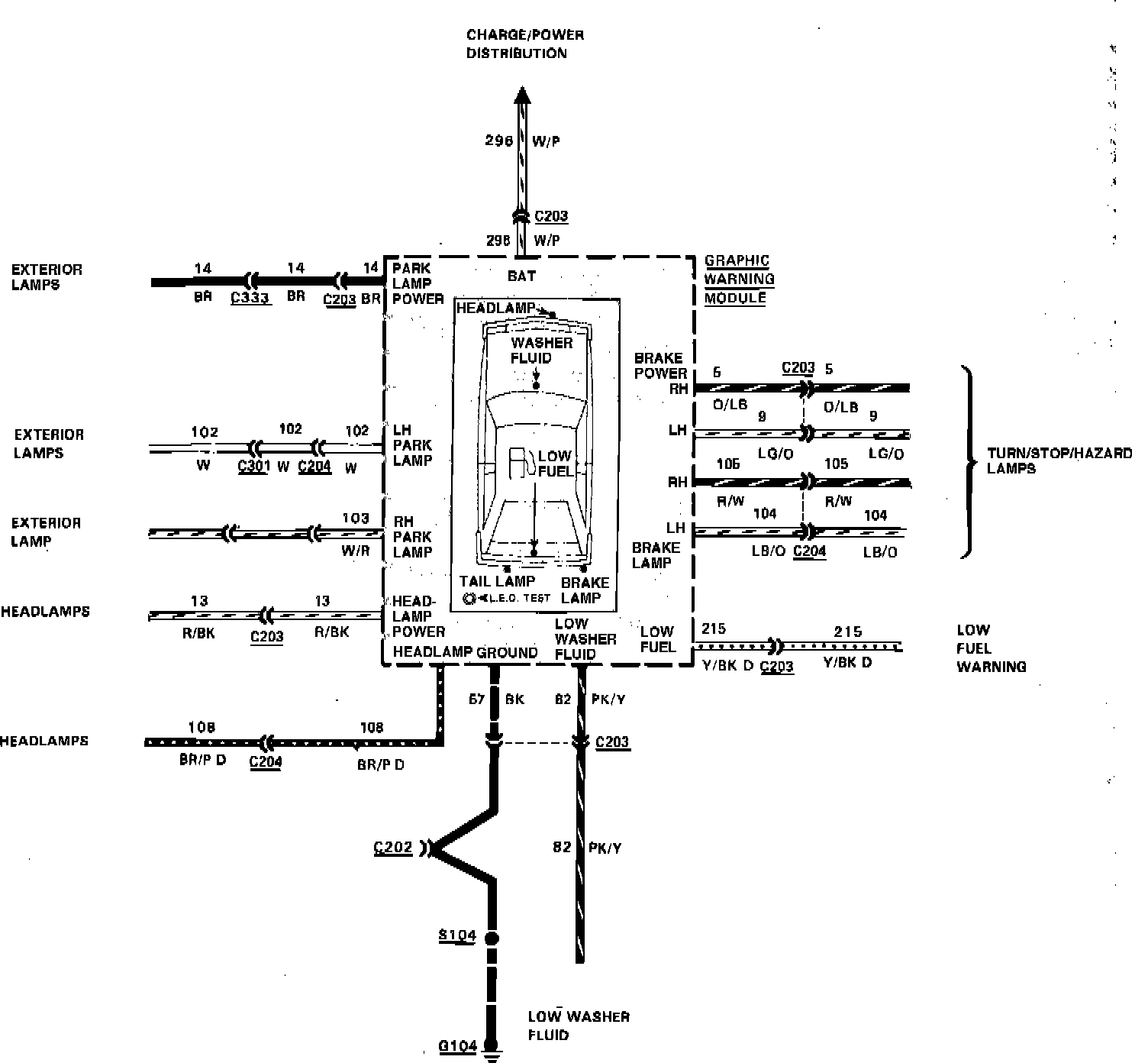

Fig. 45 Graphic display wiring circuit. 1984 Escort, EXP & Lynx:
