Liftgate Ajar Warning System Wiring Circuit

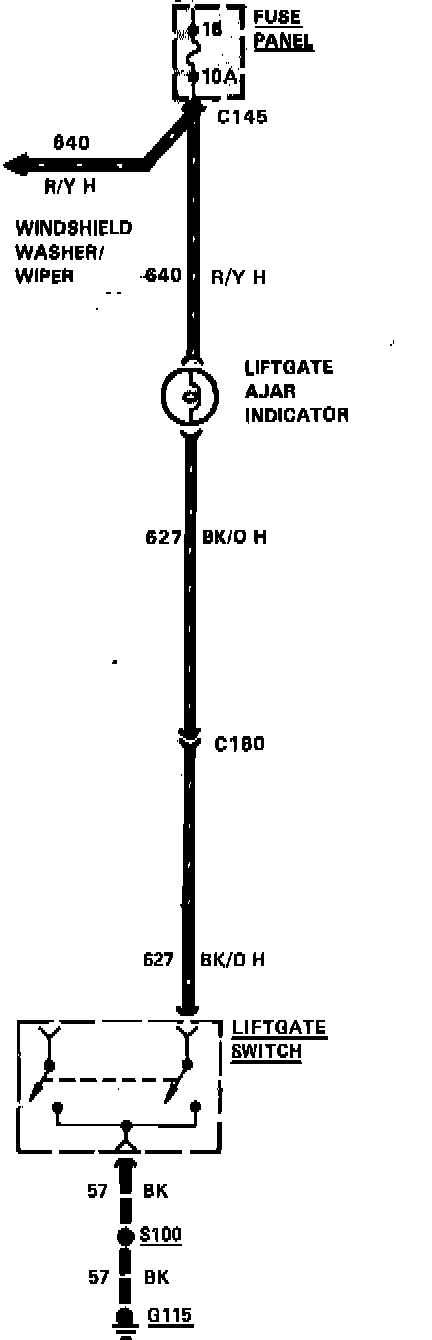

Fig. 75 Liftgate ajar warning system wiring circuit. 1984 Escort & Lynx:
