Escort, EXP & Lynx Less Liftgate Wiper

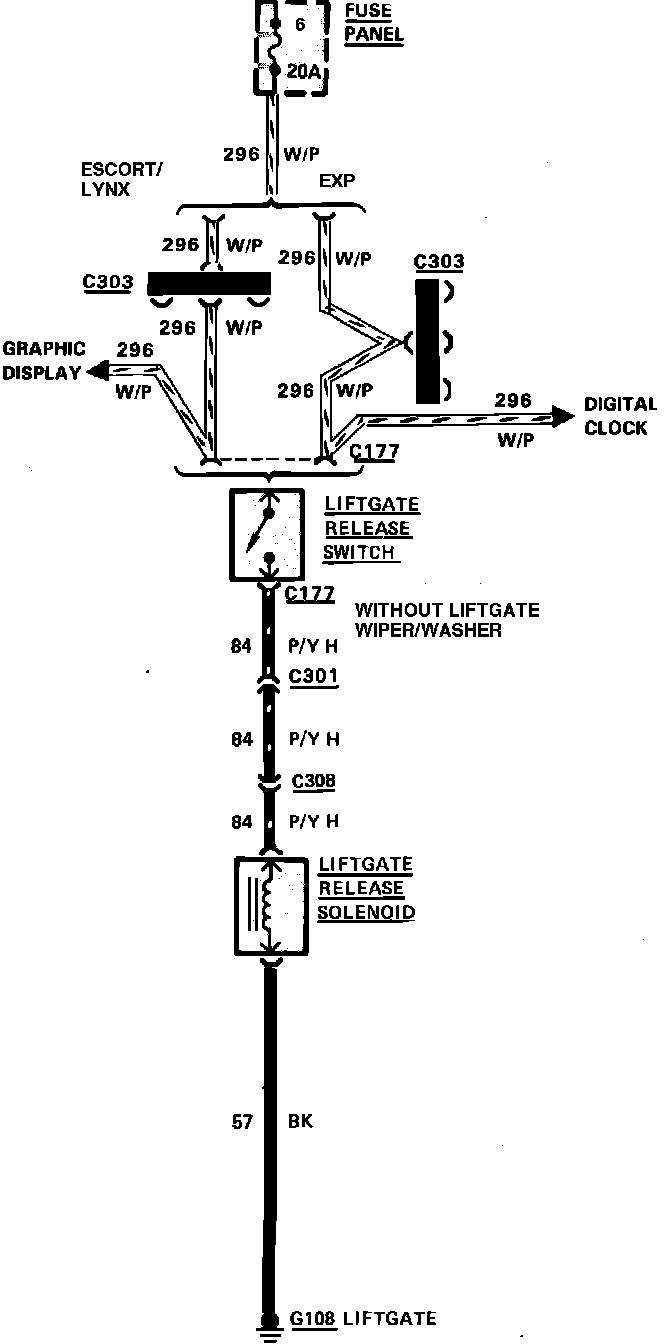

Fig. 77 Liftgate release wiring circuit. 1984 Escort, EXP & Lynx less liftgate wiper:
