Idle Speed Vacuum Solenoid Valve: Locations

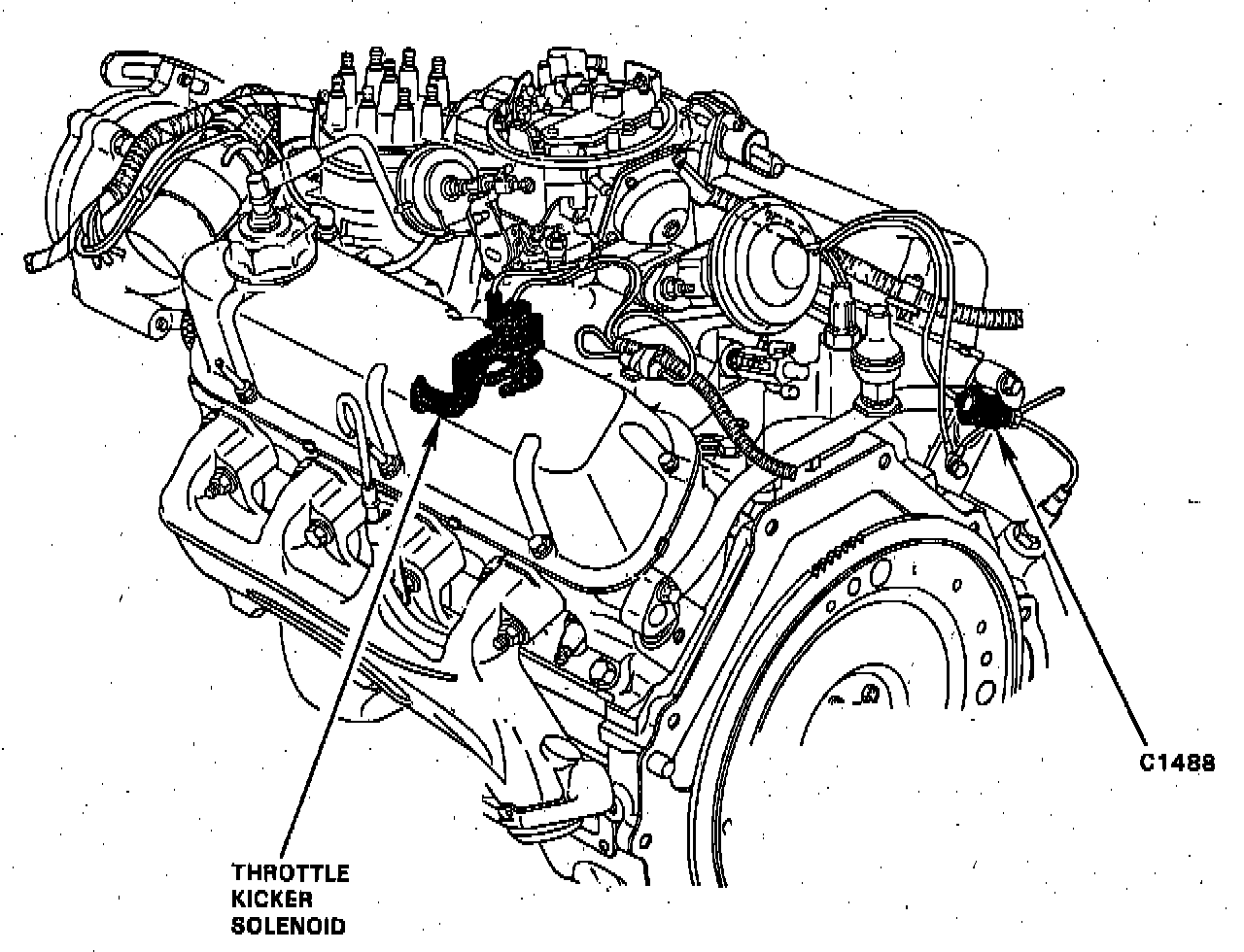

LH Top Of V8-350 Engine w/MCU.:




Attached To LH Valve Cover

Applicable to: 1984
