Home >> Mercury >> 1984 >> Cougar/XR7 V8-302 5.0L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Instrument Panel >> Speedometer Module >> Testing and Inspection >> Speedometer Does Not Illuminate

Speedometer Does Not Illuminate

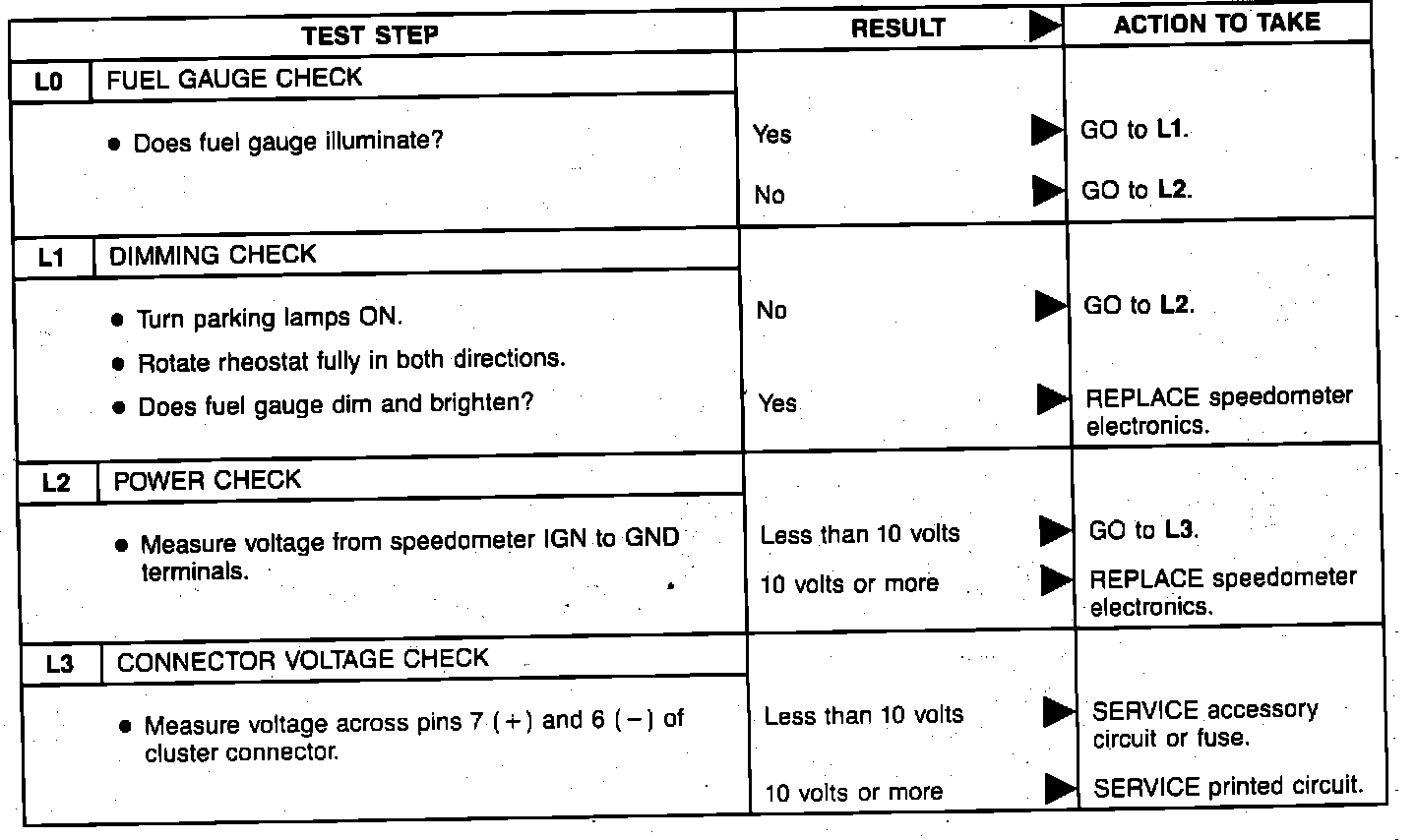

Test L0 - L3 Speedometer Does Not Illuminate:
