Engine Calibration - Specifications Issue Update
>>

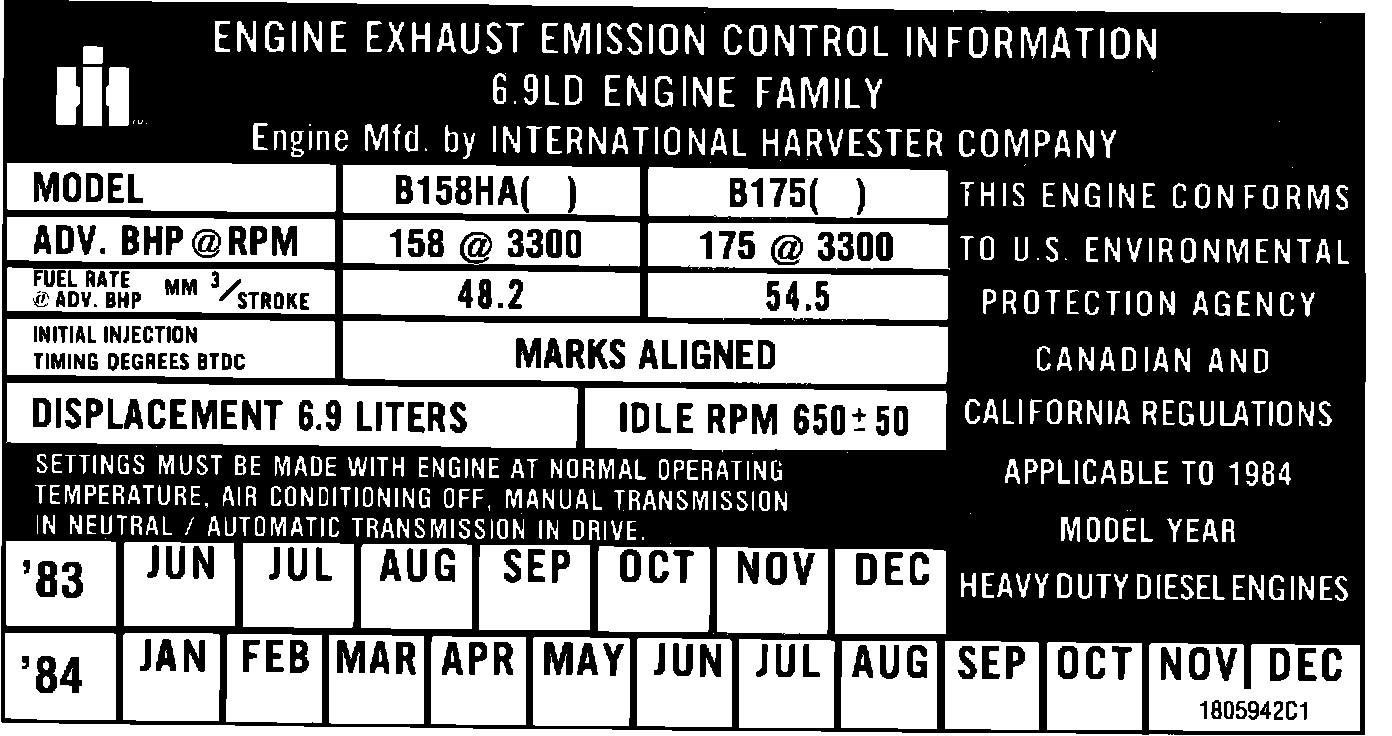

Section 5 Diesel - Car and Truck Calibration Specifications
>>
6.9L Truck Engine
>>
Calibration:4-68J-R00
Calibration:4-68J-R00
MODEL YEAR:
1984 (Model 175) TRUCK ENGINE: 6.9L
*F 250 HEAVY DUTY AND F 350 (MANUAL OR AUTOMATIC TRANSMISSION)
*E 250 HEAVY DUTY AND E 350 (AUTOMATIC TRANSMISSION ONLY)
*HOLE PUNCH DESIGNATES MODEL, YEAR, AND MONTH
