Home >> Mercury >> 1984 >> Cougar/XR7 V8-302 5.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> UE - Output Circuit Check (Canister Purge) 1984 >> UE - Wiring Diagram, UE1

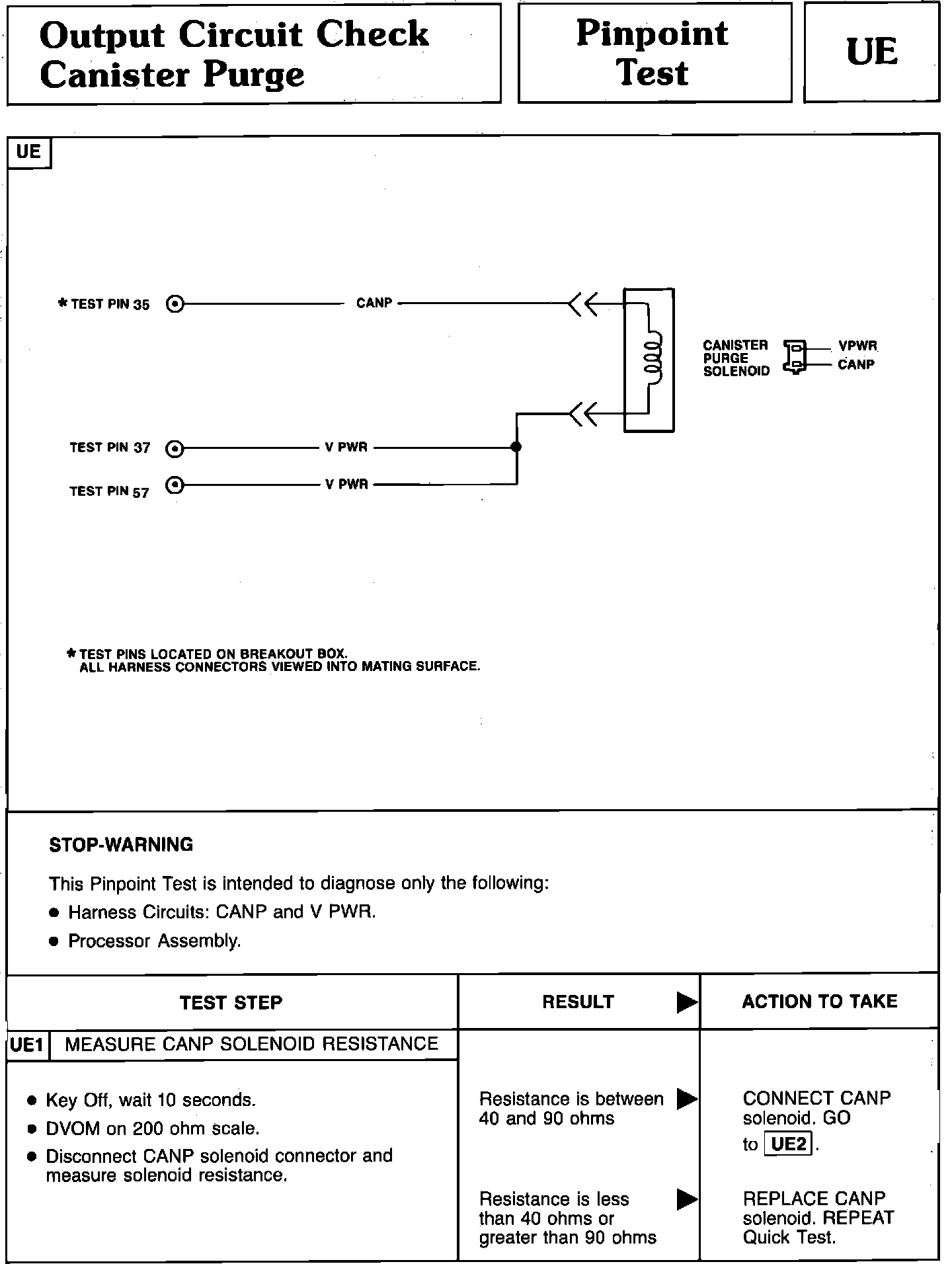

UE - Wiring Diagram, UE1
