Without Keyless Entry, Illuminated Entry, Power Locks/Windows.

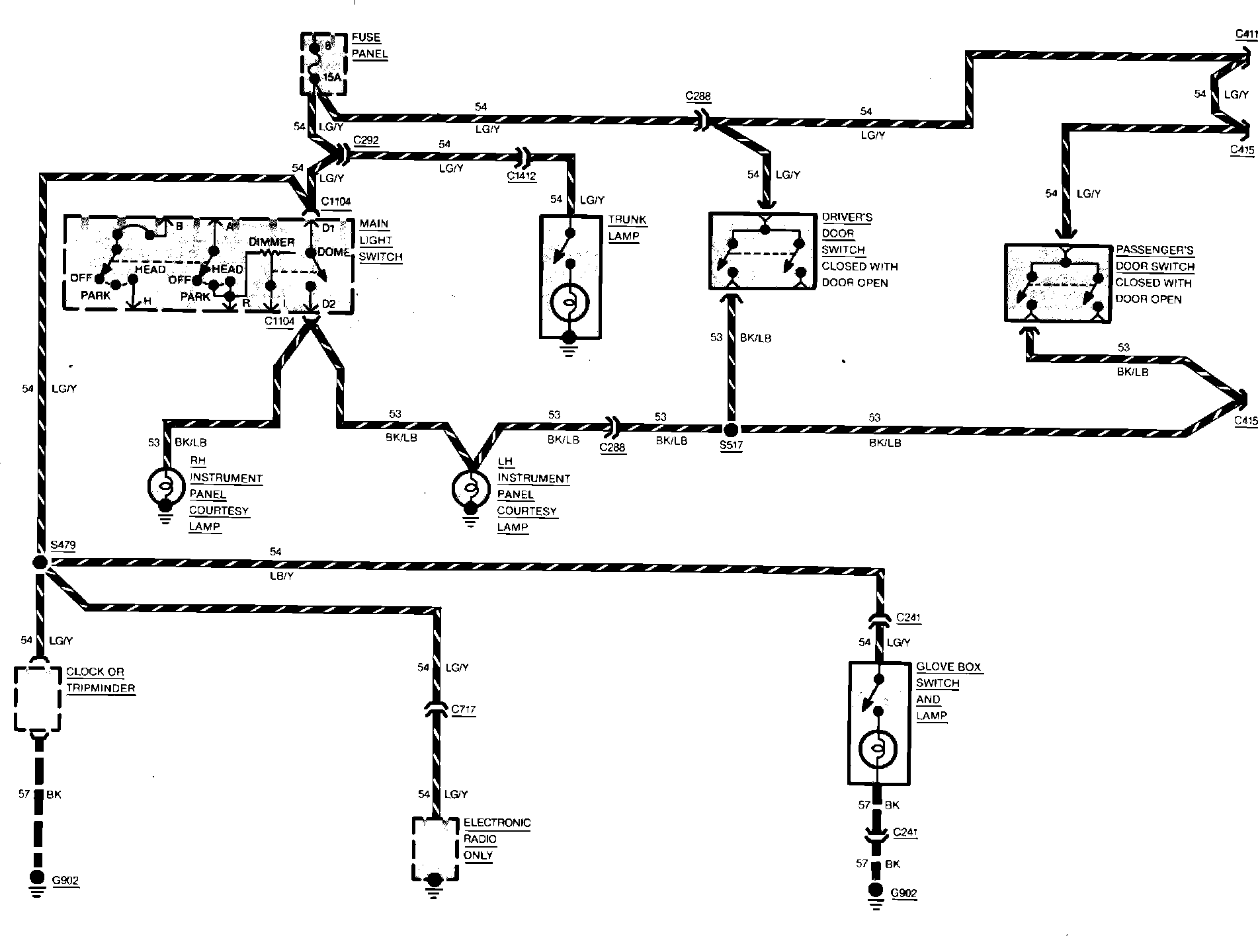

Fig. 31 Courtesy Lamp Wiring Circuit (Part 1 of 2). 1984 Cougar & Thunderbird less Keyless Entry, Illuminated Entry, Power Door Locks Or Windows:
Fig. 31 Courtesy Lamp Wiring Circuit (Part 2 of 2). 1984 Cougar & Thunderbird less Keyless Entry, Illuminated Entry, Power Door Locks Or Windows:
