Trailer Connector

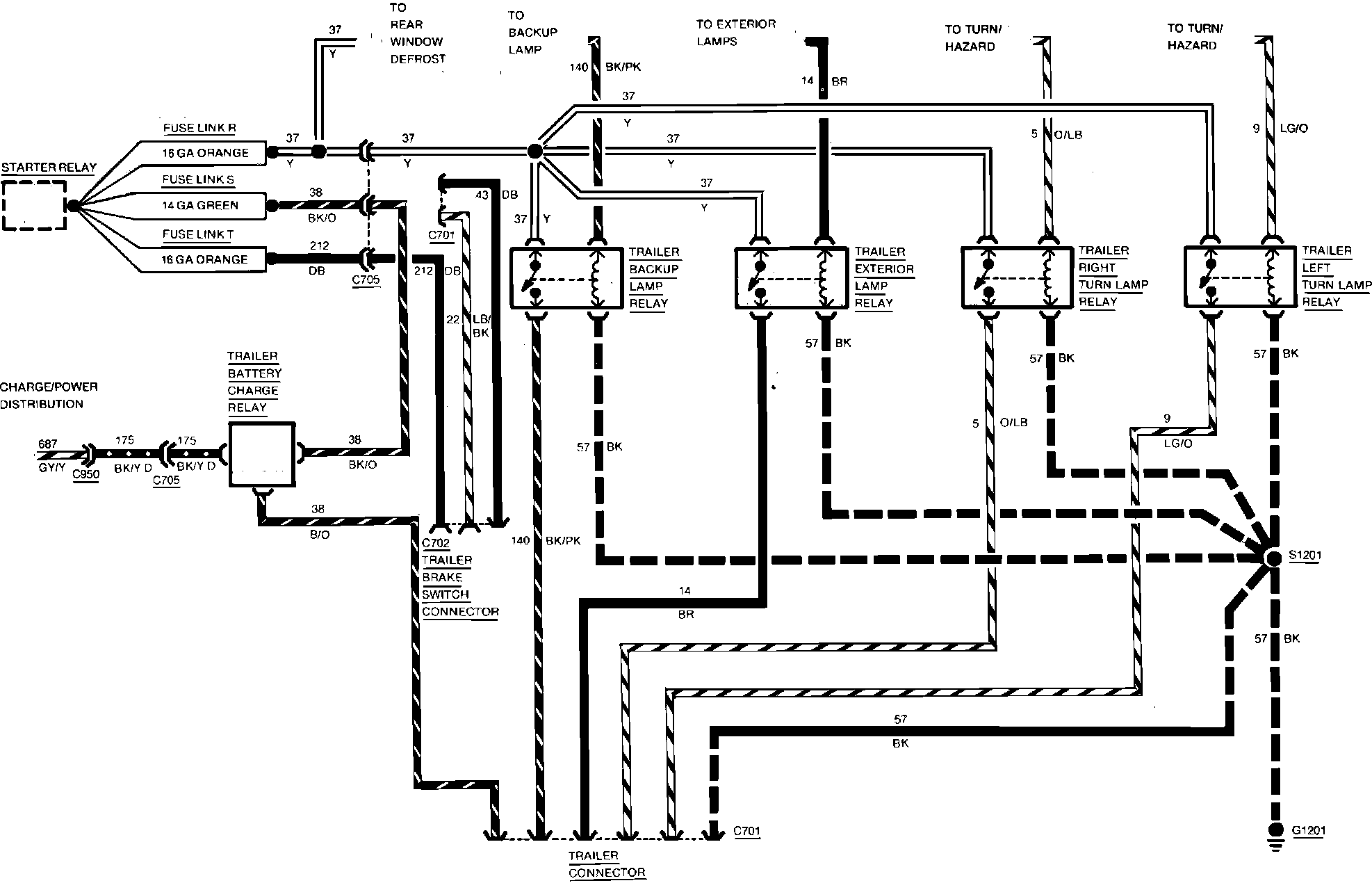

Fig. 94 Trailer Tow Option Wiring Circuit. 1984 Cougar & Thunderbird with 8 Cyl Engine:
