Warning Chime or Voice Alert Wiring Circuit

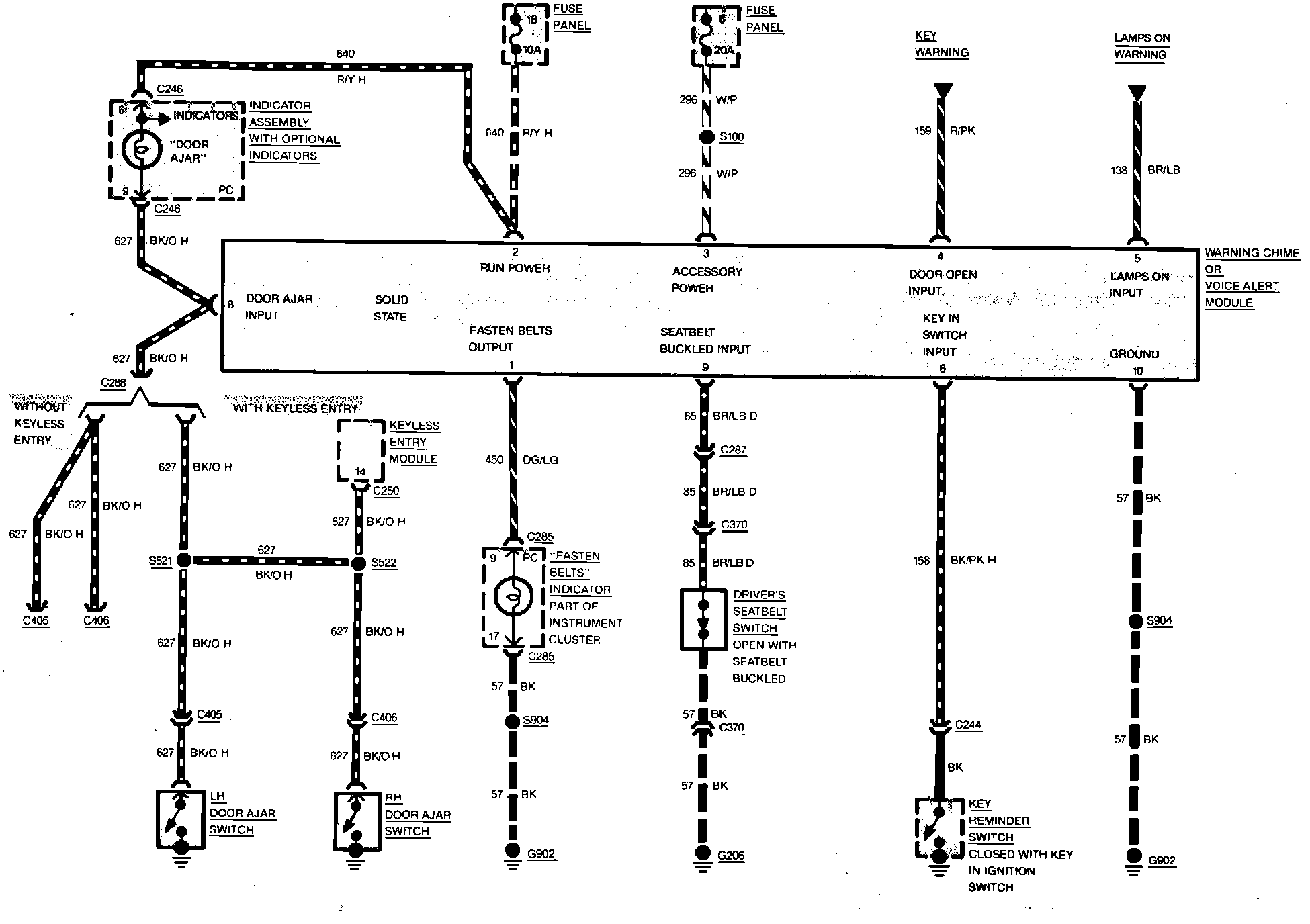

Fig. 102 Warning Chime Or Voice Alert Wiring Circuit. 1984 Cougar & Thunderbird:
