Home >> Mercury >> 1984 >> Cougar/XR7 V8-302 5.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> System Diagram >> Electronic Climate Control

Electronic Climate Control

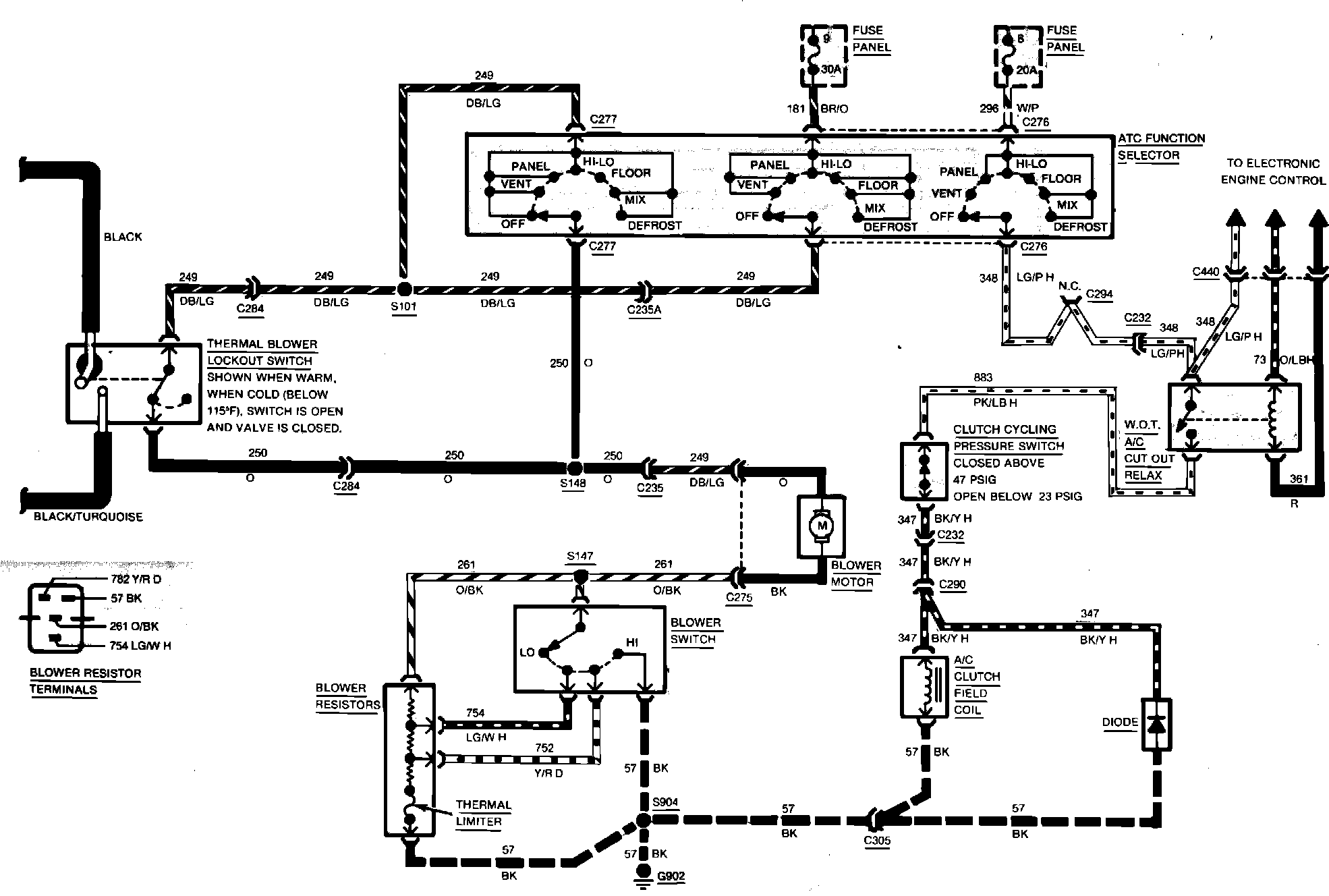

Fig. 12 Air Conditioning & Heater Wiring Circuit. 1984 Cougar & Thunderbird with Automatic Temperature Control:
