Calibration:4-37A-R00 Nippondenso VE-4 RF33-13-800A RF33-13-800B (Alternate)

MODEL YEAR: 1984 CAR ENGINE: 2.0L
FUEL INJECTION PUMP SPECIFICATIONS

Model: Nippondenso VE-4
Part Number: RF33-13-800A RF33-13-800B (Alternate)

COLD START SYSTEM

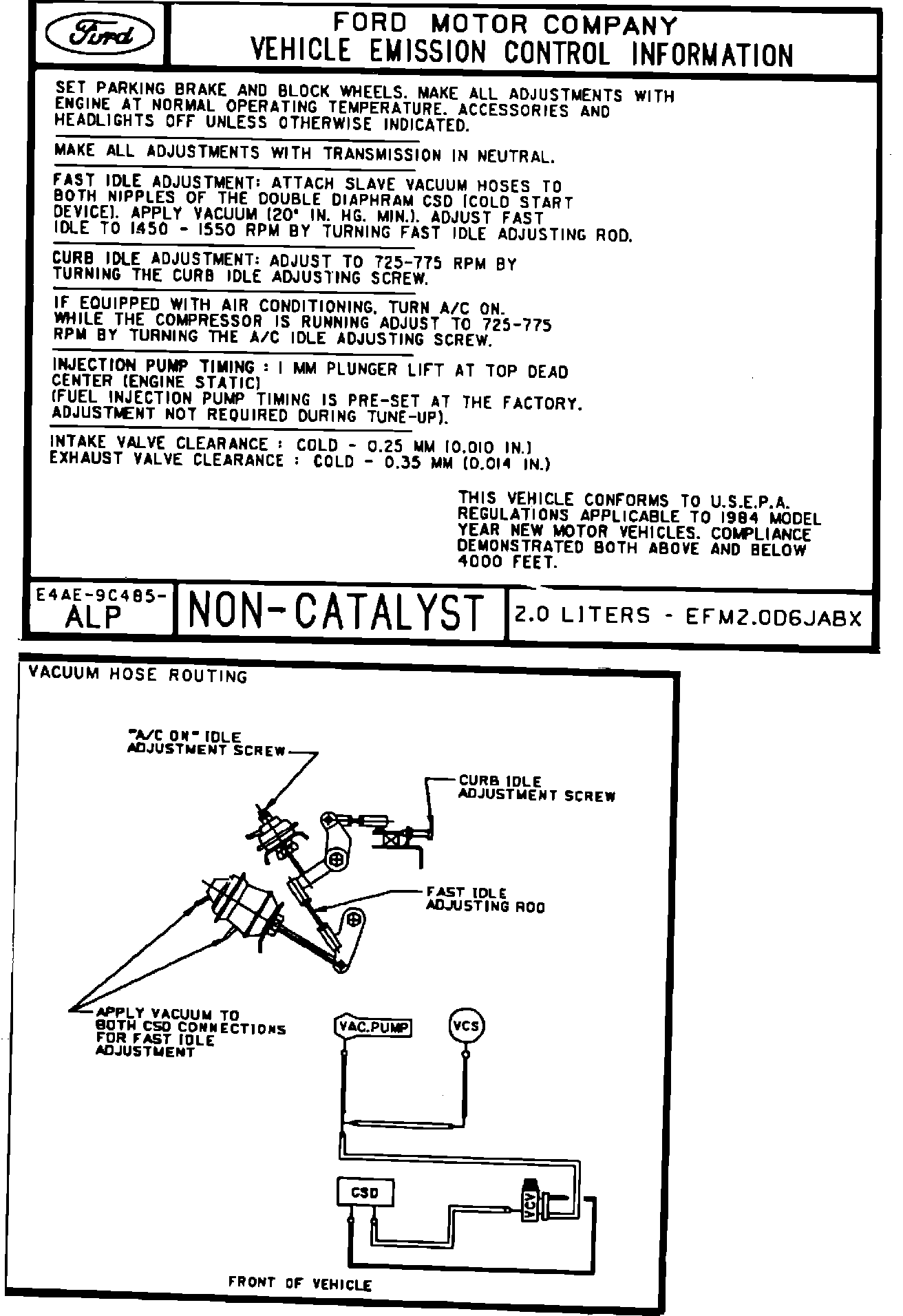

The dual vacuum can cold start device increases engine speed and injection pump timing as shown:

Engine Coolant Temperature Injection Pump Timing Engine Speed

Below 45~F (7~C) 8~ BTDC 1450-1550 RPM

45-68~F (7-20~C) 5~ BTDC 1050-1350 RPM

Over 68~F (20~C) 0~ TDC 725-775 RPM
