Home >> Mercury >> 1984 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Instrument Panel Illumination

Instrument Panel Illumination

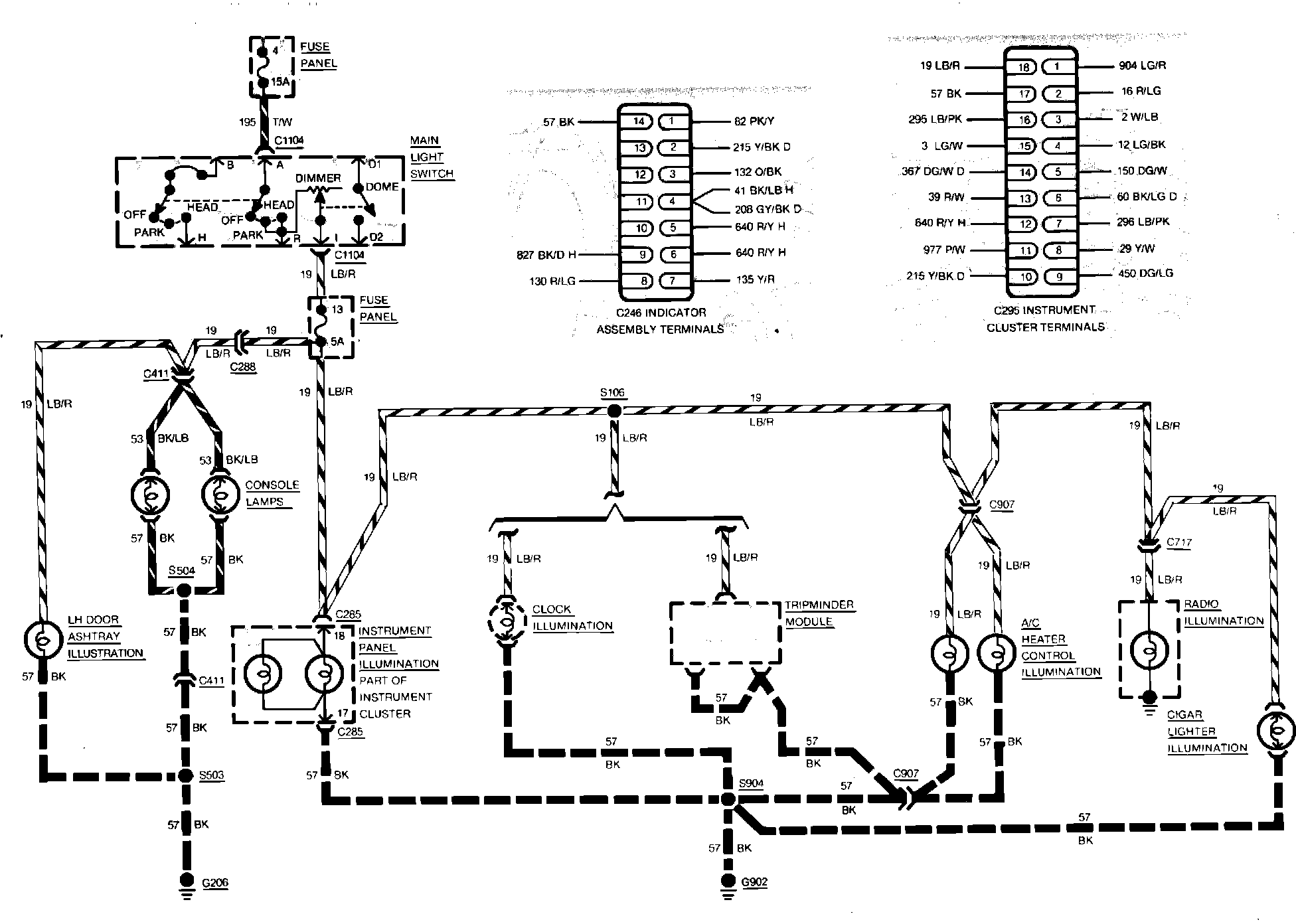

Fig. 65 Instrument Panel Illumination Wiring Circuit. 1984 Cougar & Thunderbird with 6 or 8 Cyl Engine:
