Instrument Panel Illumination

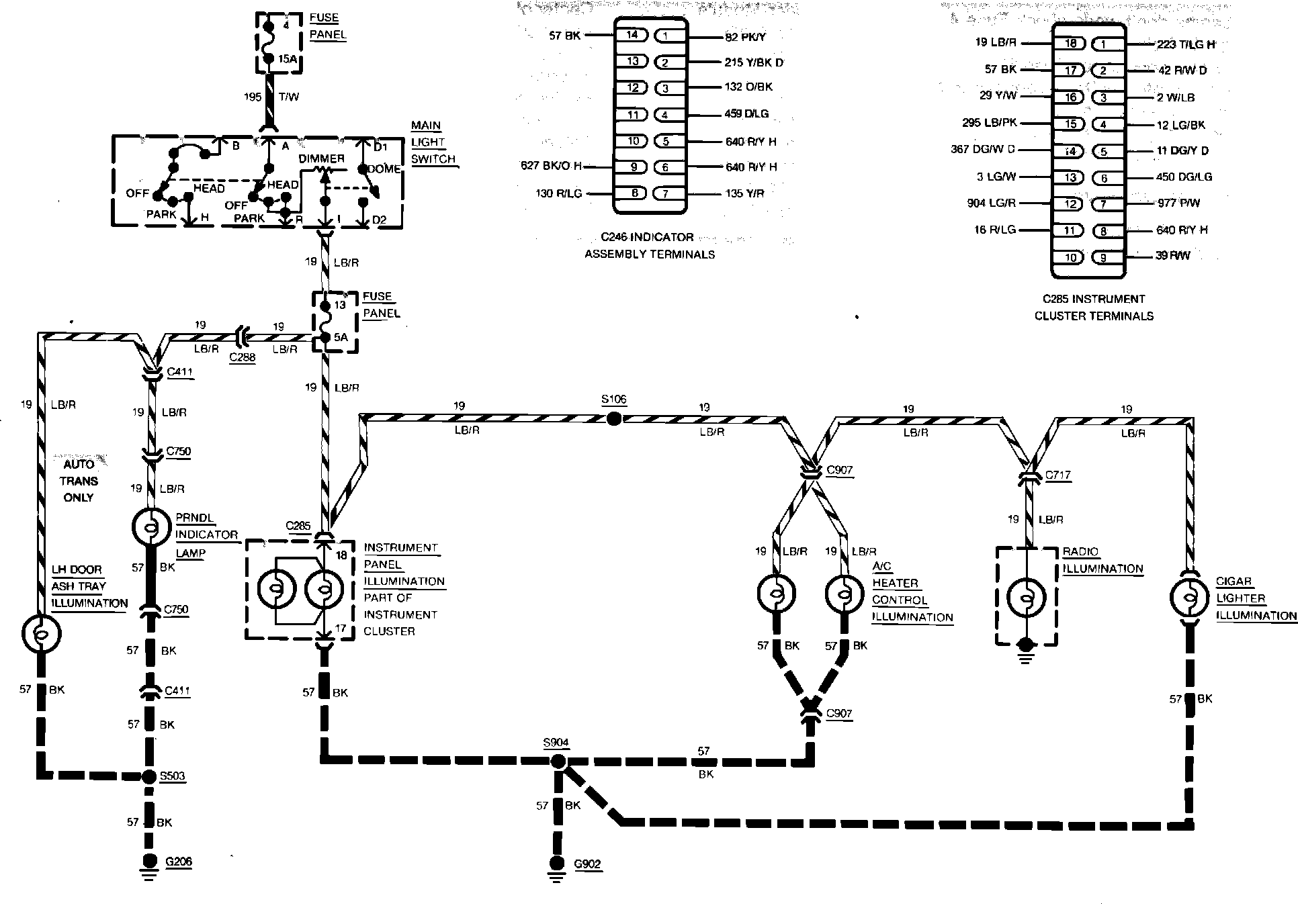

Fig. 64 Instrument Panel Illumination Wiring Circuit. 1984 Cougar & Thunderbird with 4 Cyl Engine:
