Junction Block Wiring Circuit

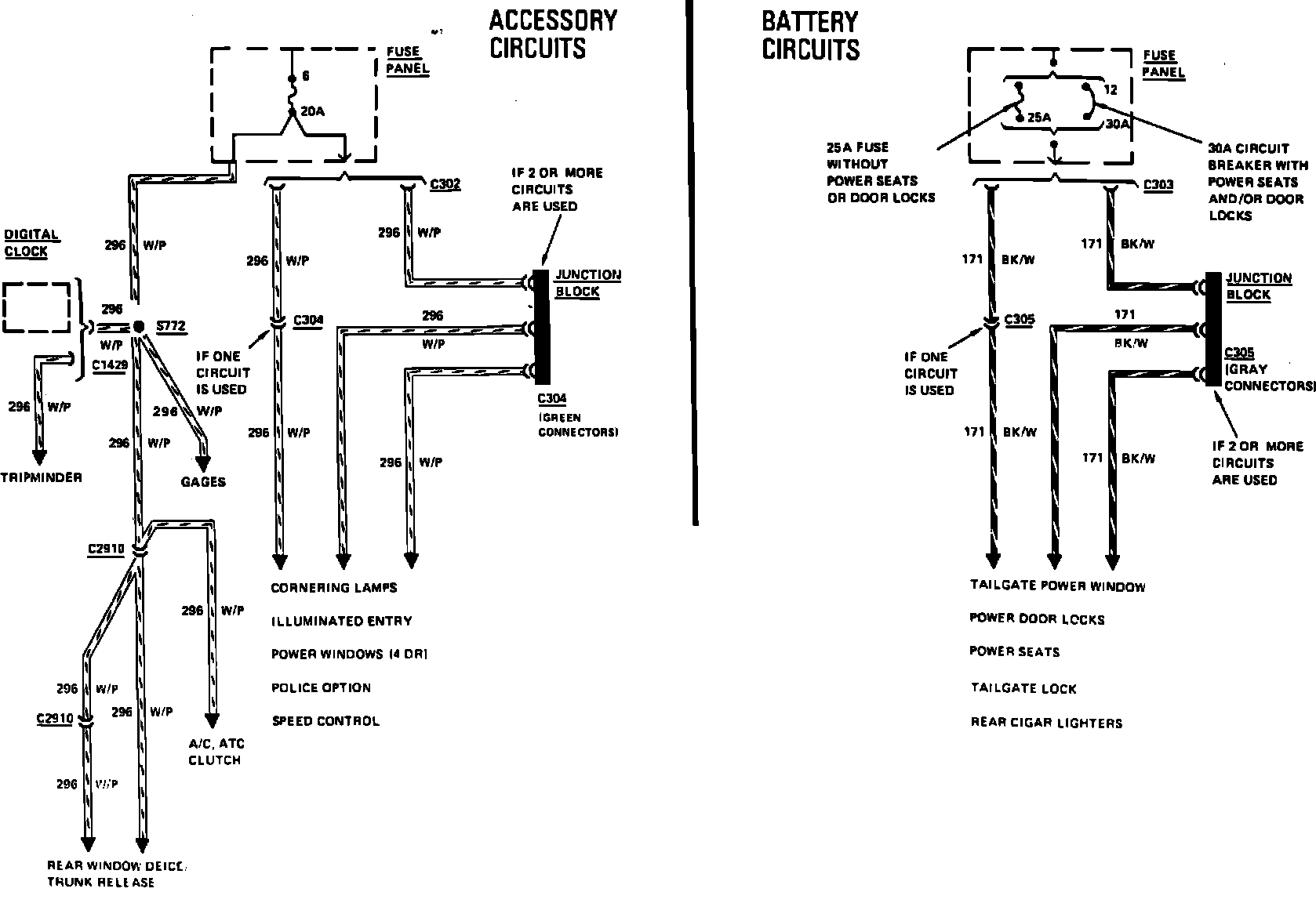

Fig. 42 Junction Block Wiring Circuit. 1984 Crown Victoria & Grand Marquis:
