Home >> Mercury >> 1984 >> Colony Park V8-302 5.0L VIN F TBI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Malfunction Indicator Lamp >> Diagrams >> Electrical Diagrams

Electrical Diagrams

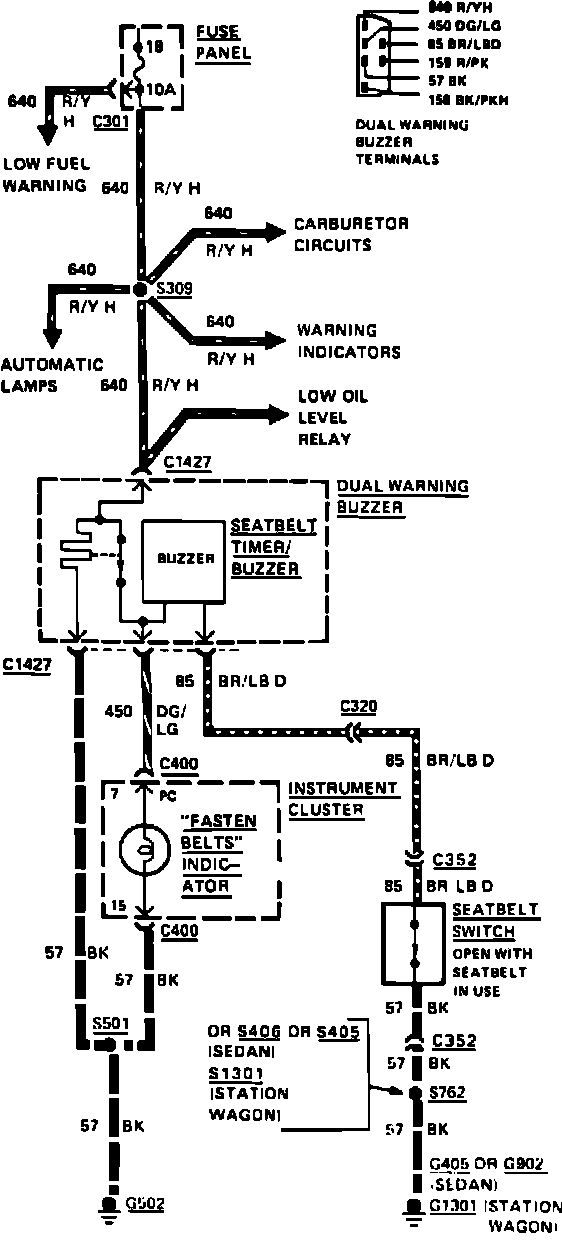

Fig. 65 Seat Belt Warning Wiring Circuit. 1984 Crown Victoria & Grand Marquis:
