Heating and Air Conditioning

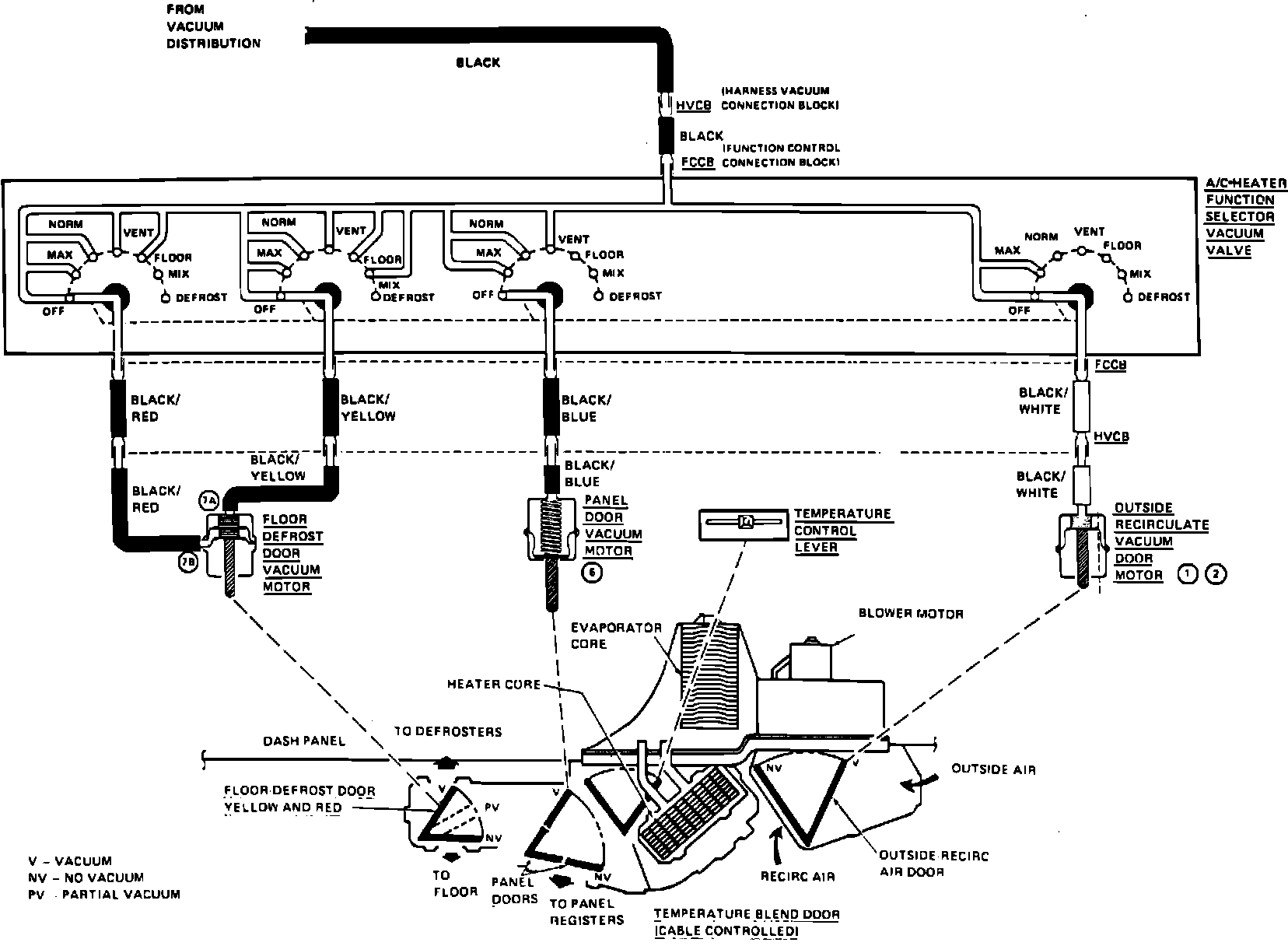

Fig. 3 Air Conditioning & Heater Vacuum Circuit. 1983-84 Crown Victoria & Grand Marquis (Less Automatic Temperature Control):

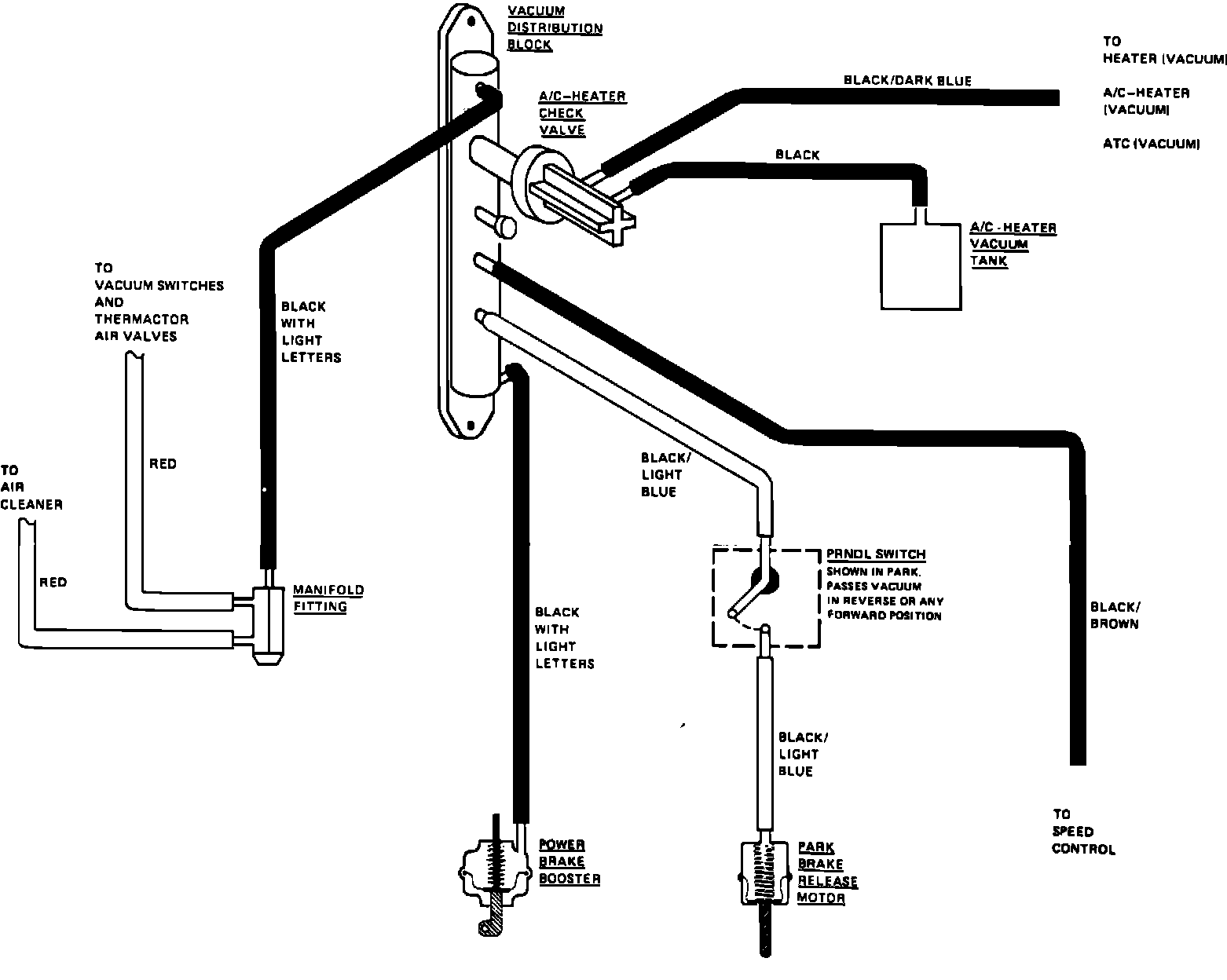

Fig. 2 Vacuum Distribution. 1983-84 Crown Victoria & Grand Marquis:

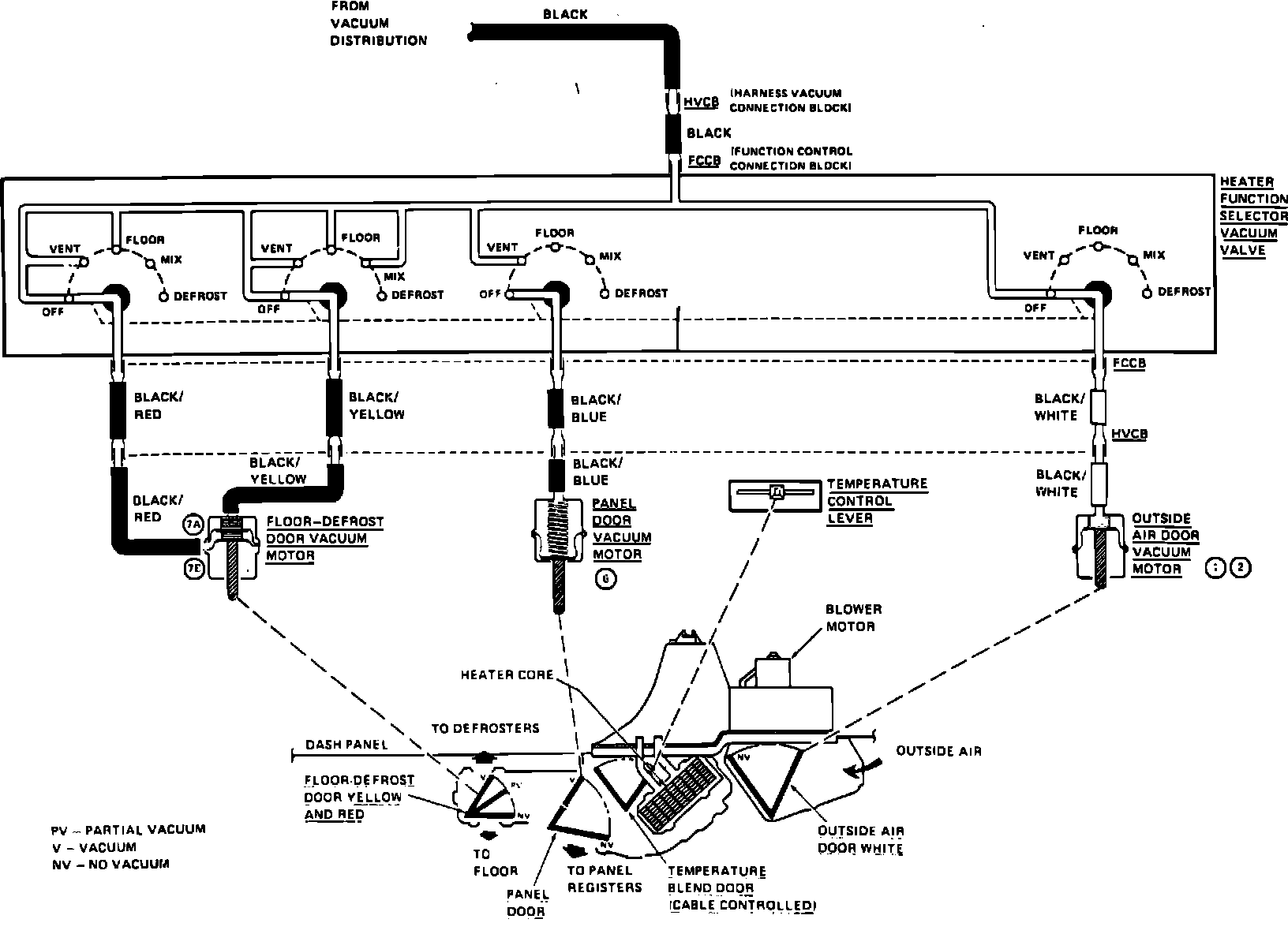

Fig. 5 Heater Vacuum Circuit. 1983-84 Crown Victoria & Grand Marquis (Less Air Conditioning):
